oil return hose route
|
|
oil return hose route |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest

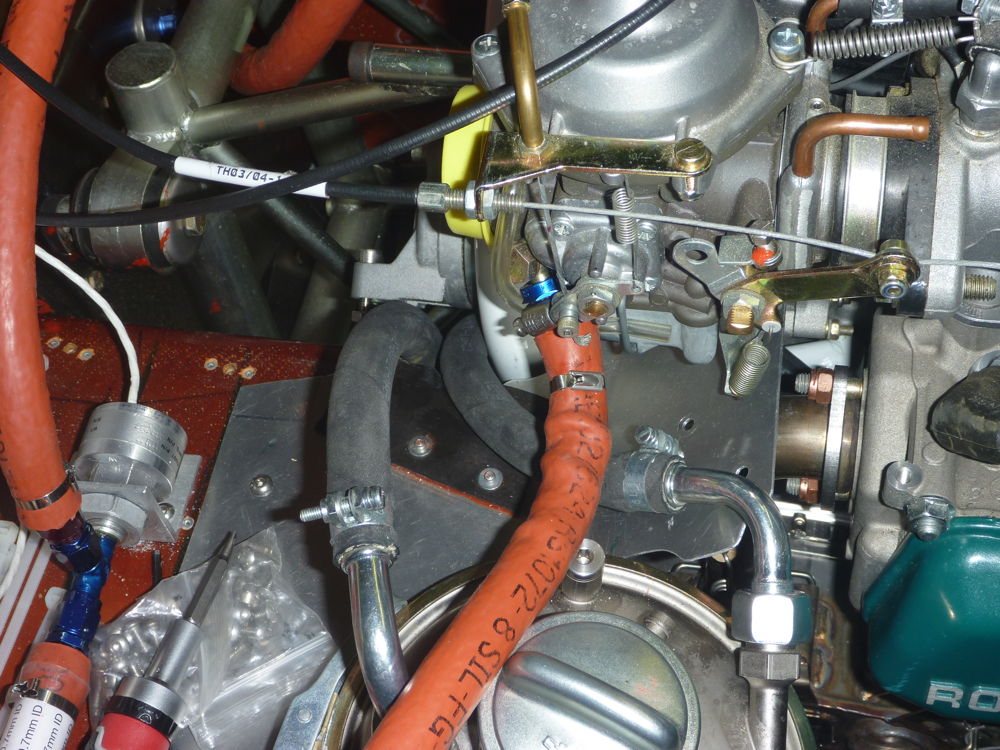

oil hose sump to tank: 2020-01-07 Panasonic DMC-FT1
Routing the oil hose from the tank inlet (right-hand side) towards the sump banjo.

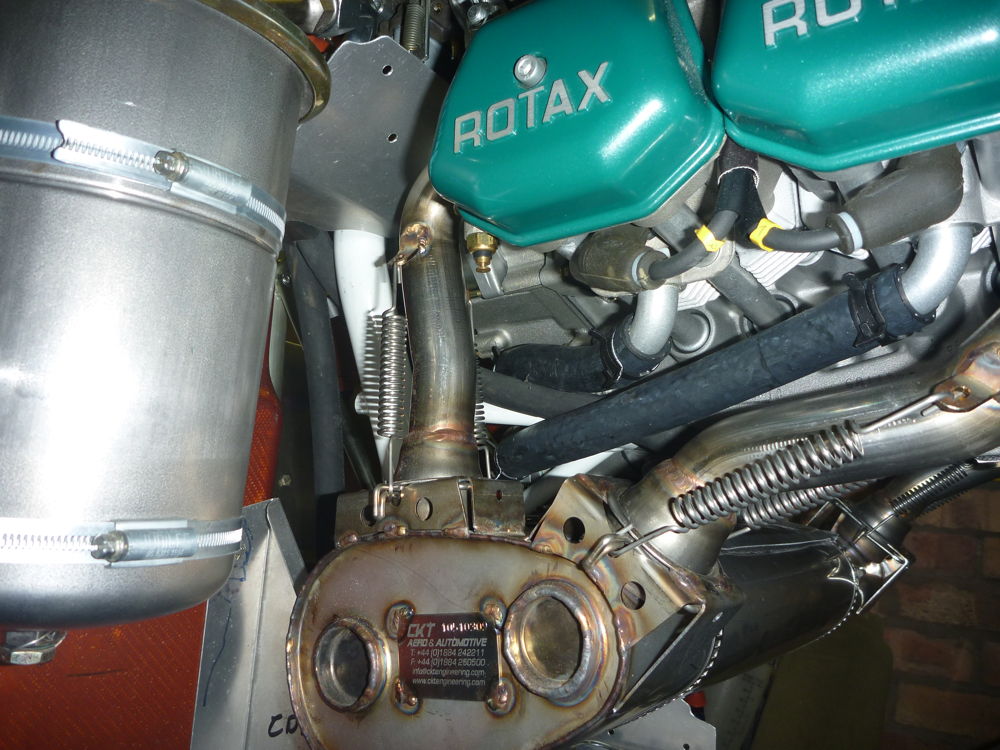

oil hose sump to tank: 2020-01-07 Panasonic DMC-FT1
Routing the oil hose from the tank inlet towards the sump banjo. The oil hose is visible passing between the water hoses connected to cylinders 1 & 3.

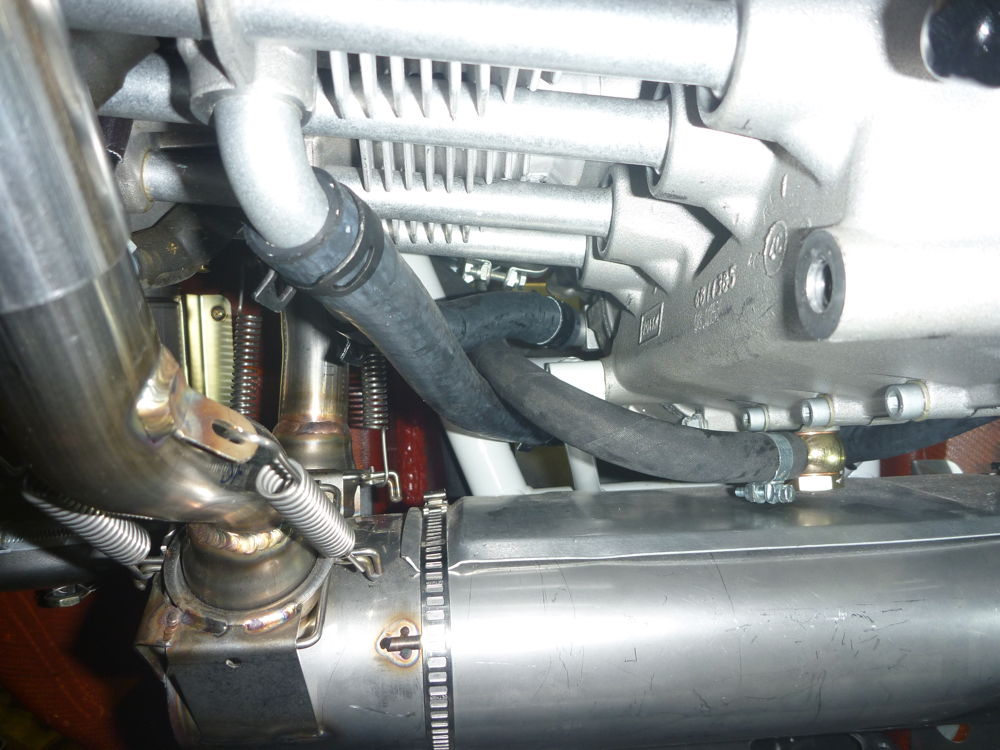

oil hose sump to tank: 2020-01-07 Panasonic DMC-FT1
The oil hose from the tank inlet connecting to the sump banjo.
