marking slot for flap actuator cross-tube
|
|
marking slot for flap actuator cross-tube |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

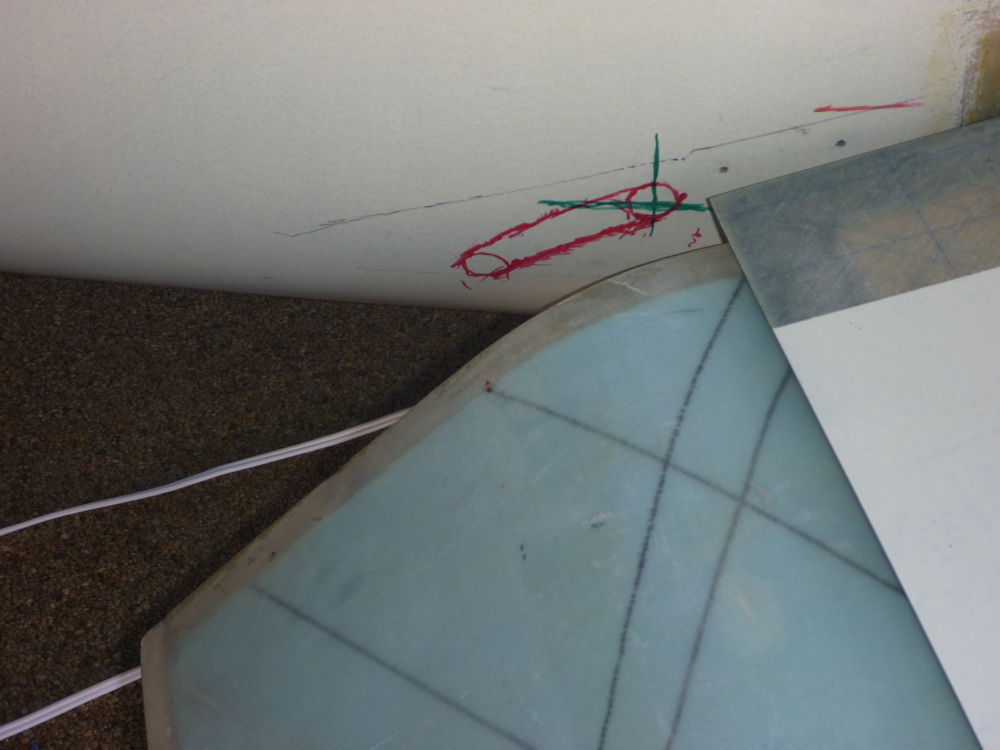

flap actuator slot marked (starboard): 2015-01-24
Lumix DMC-FT1
The red marking shows the approximate line of the slot needed for the flap actuator cross-tube in the starboard side of the fuselage. It was difficult to create this outline as the flap pin (which the cross-tube has to follow) is quite some way away from the fuselage in the retraced position, and gets further away as the flap extends.

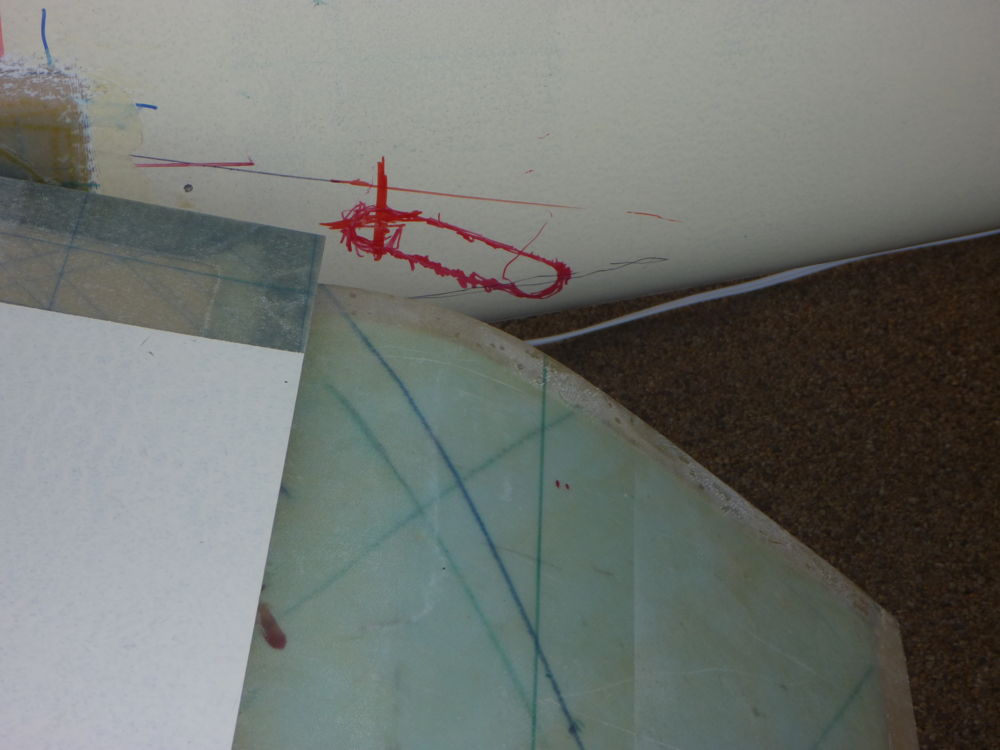

flap actuator slot marked (port): 2015-01-24
Lumix DMC-FT1
The red marking shows the approximate line of the slot needed for the flap actuator cross-tube in the port side of the fuselage. It was difficult to create this outline as the flap pin (which the cross-tube has to follow) is quite some way away from the fuselage in the retraced position, and gets further away as the flap extends.
