fuel hose in tunnel
|
 |
fuel hose in tunnel
fuel hose in tunnel: 2019-06-05 Panasonic DMC-FT1

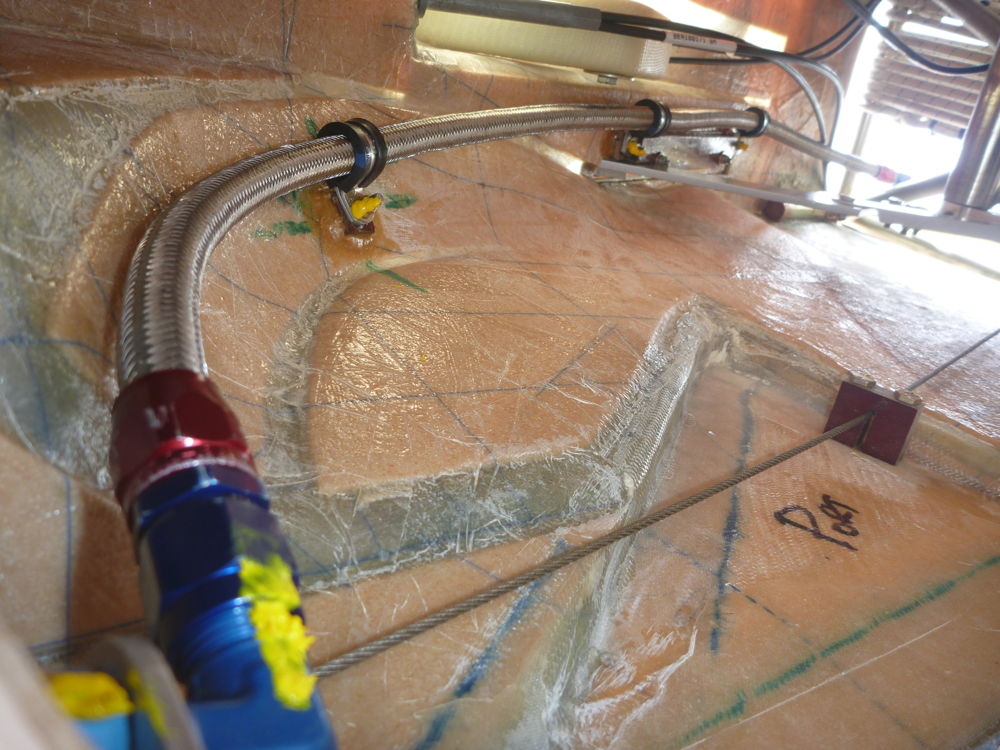

The braided steel fuel hose routed through the tunnel, looking up and to port. The supporting clamps, mounted on bonded-in studs, keep the hose near the port wall of the tunnel but clear of the retract mechanism. Stiffnuts now fitted to secure the clamps and inspectors lacquer applied. The stainless steel firewall is absent at this point, hence the daylight near top right of the picture.
|
This page last updated 2019-08-02.
