vent and sight gauge tubing route out of seatback
|
|
vent and sight gauge tubing route out of seatback |
|
|
 |
Navigation & Acknowledgements |
Tubing above fuel tank connexion C: 2022-01-08 Panasonic DMC-FT1

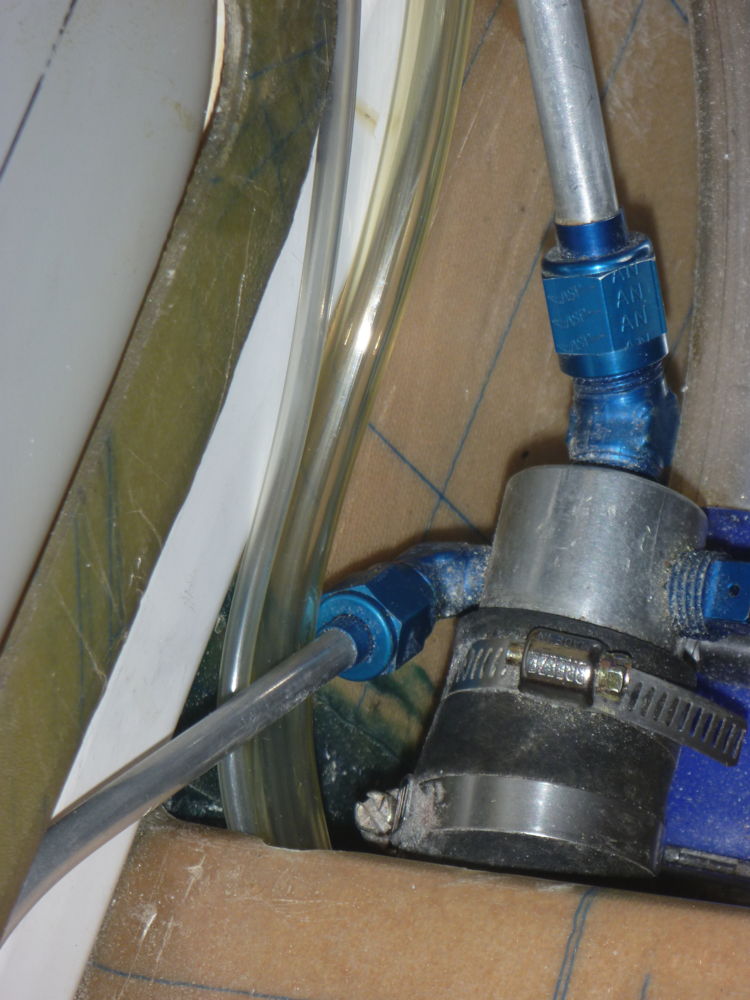

The sight gauge tubing (larger diameter) and the vent tubing for the fuel weight sensor (smaller diameter) emerging from the starboard aft corner of the seatback, above the C fuel tank fitting. These tubes will be led up to the vent cluster at the top of the fuel filler cobra.
