profiling tailplanes: 2018-09-18 Panasonic DMC-FT1

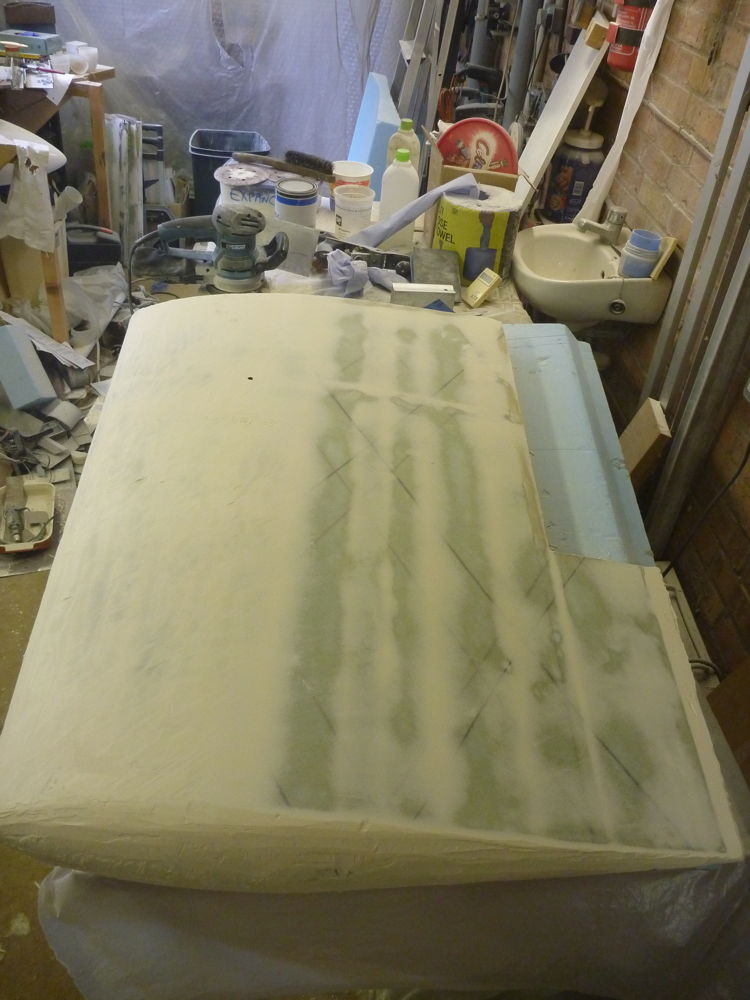

Smoothing out the plane marks on the filler, on the underside of starboard tailplane, with a 50 grit disc on the DA sander. The filler remaining in spanwise white stripes indicates where hollows remained after filling the hot-wire slots in the foam core for the lightening holes.
profiling tailplanes: 2018-09-18 Panasonic DMC-FT1

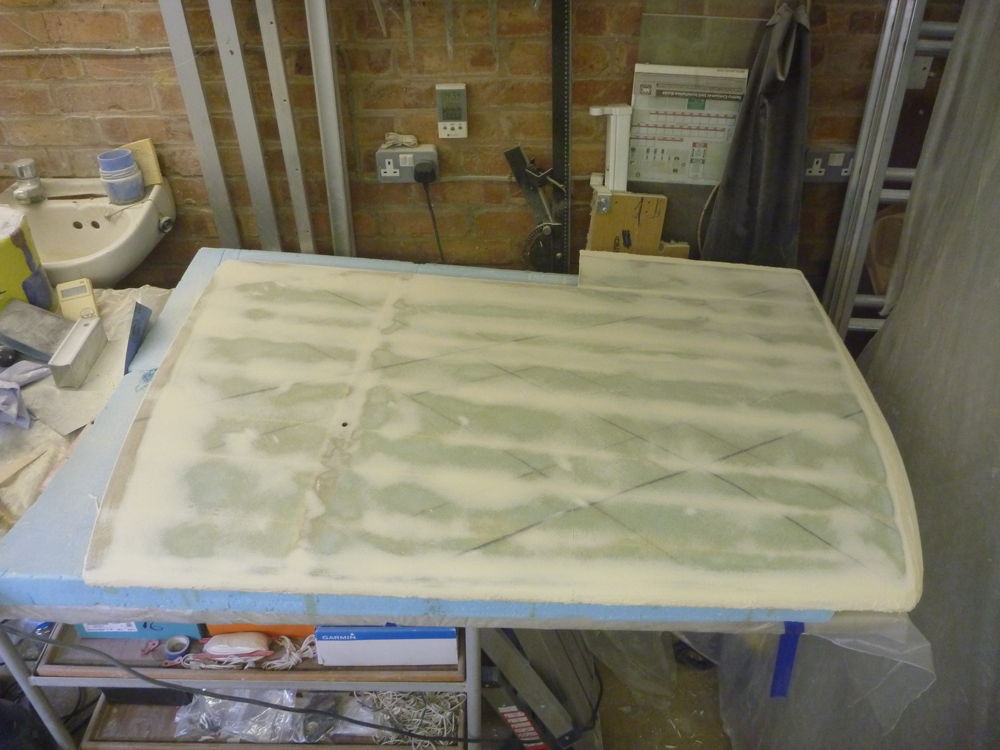

Underside of starboard tailplane after sanding with a 50 grit disc on the DA sander. The filler remaining in spanwise white stripes indicates where hollows remained after filling the hot-wire slots in the foam core for the lightening holes.
