Tailwheel arm mount plywood stack

8 pictures on this page - scroll down to see the rest

tailwheel mount depression

tailwheel mount depression: 2013-08-30

Panasonic Lumix DMC-FT1

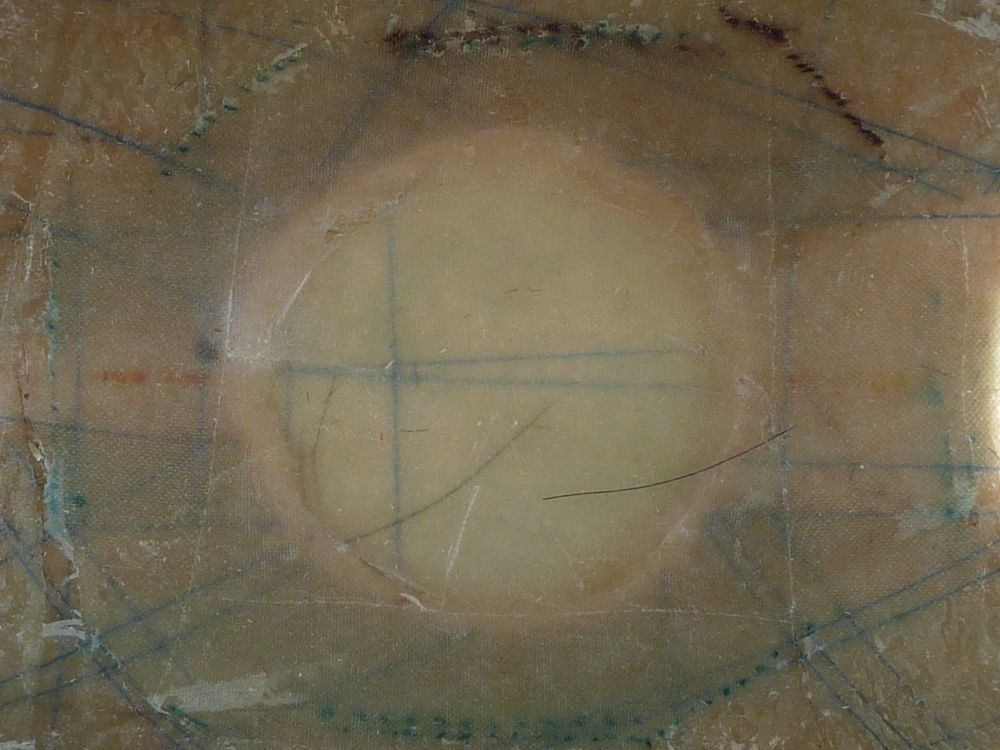

The depression in the bottom fuselage for the tailwheel mounting pad where the inner and outer skins have been tied together with 3 layers of BID.

tailwheel mount pad ply 1

tailwheel mount pad ply 1: 2013-08-30

Panasonic Lumix DMC-FT1

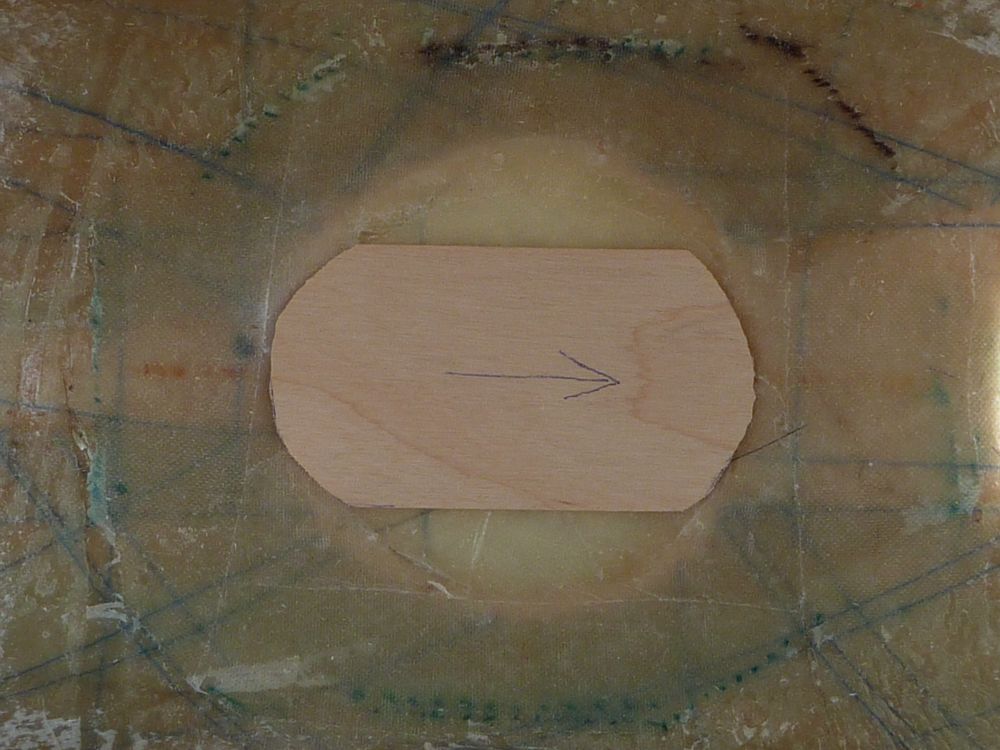

Layer 1 of the plywood pad for the tailwheel arm mount, placed in the depression in the fuselage bottom.

tailwheel mount pad ply 2

tailwheel mount pad ply 2: 2013-08-30

Panasonic Lumix DMC-FT1

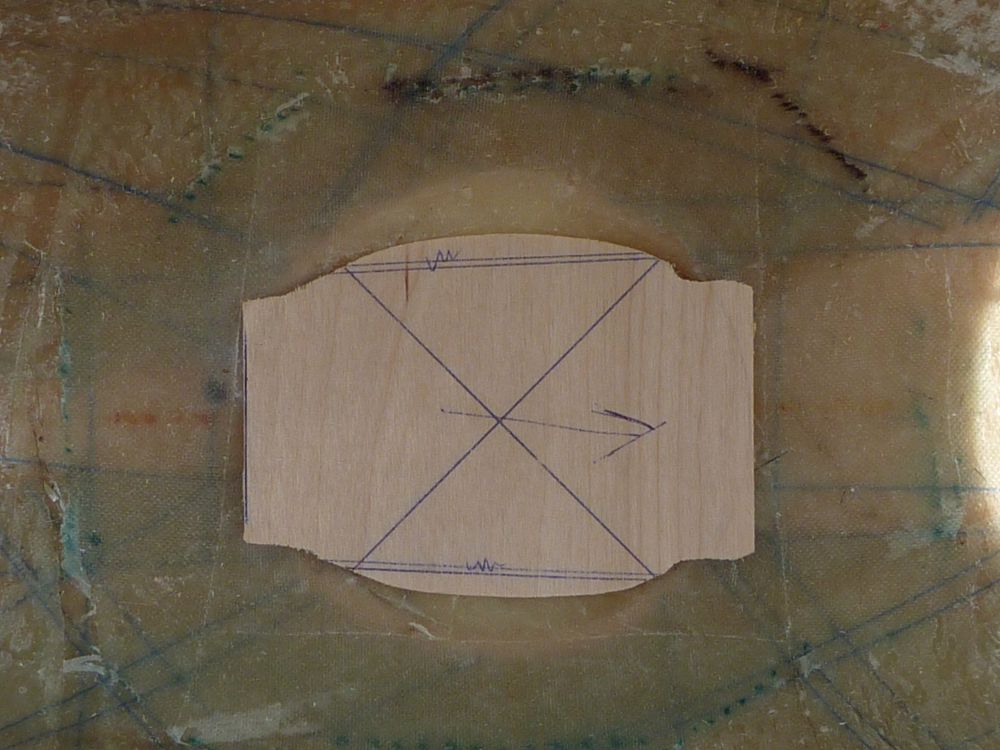

Layers 1 & 2 of the plywood pad for the tailwheel arm mount, placed in the depression in the fuselage bottom.

tailwheel mount pad ply 3

tailwheel mount pad ply 3: 2013-08-30

Panasonic Lumix DMC-FT1

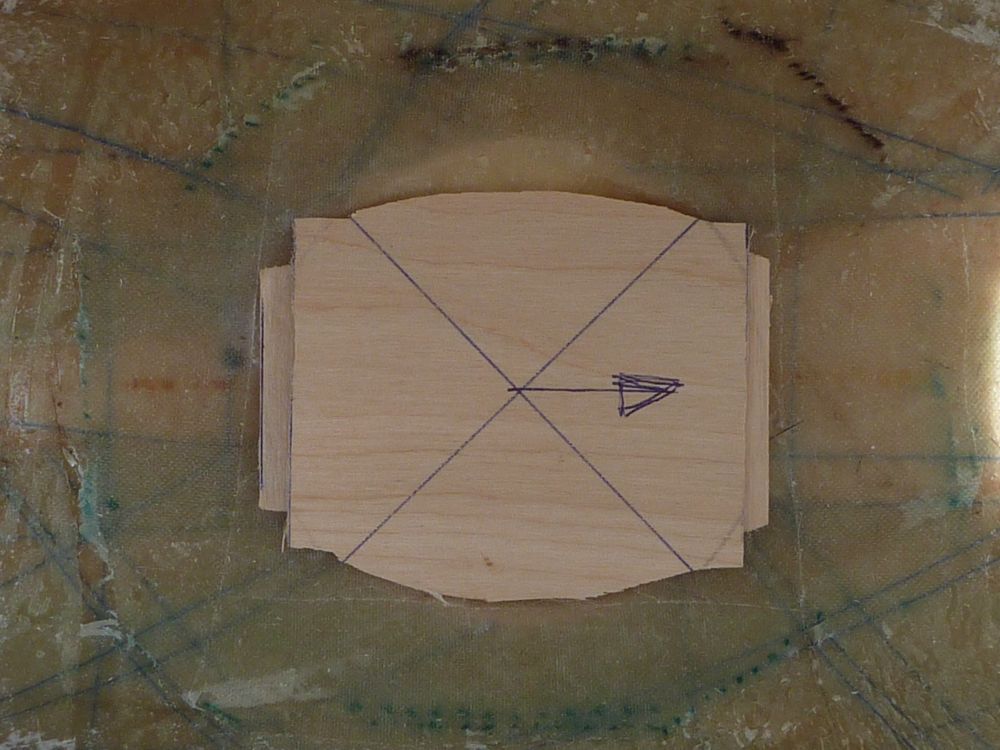

Layers 1, 2 & 3 of the plywood pad for the tailwheel arm mount, placed in the depression in the fuselage bottom.

tailwheel mount pad ply 4

tailwheel mount pad ply 4: 2013-08-30

Panasonic Lumix DMC-FT1

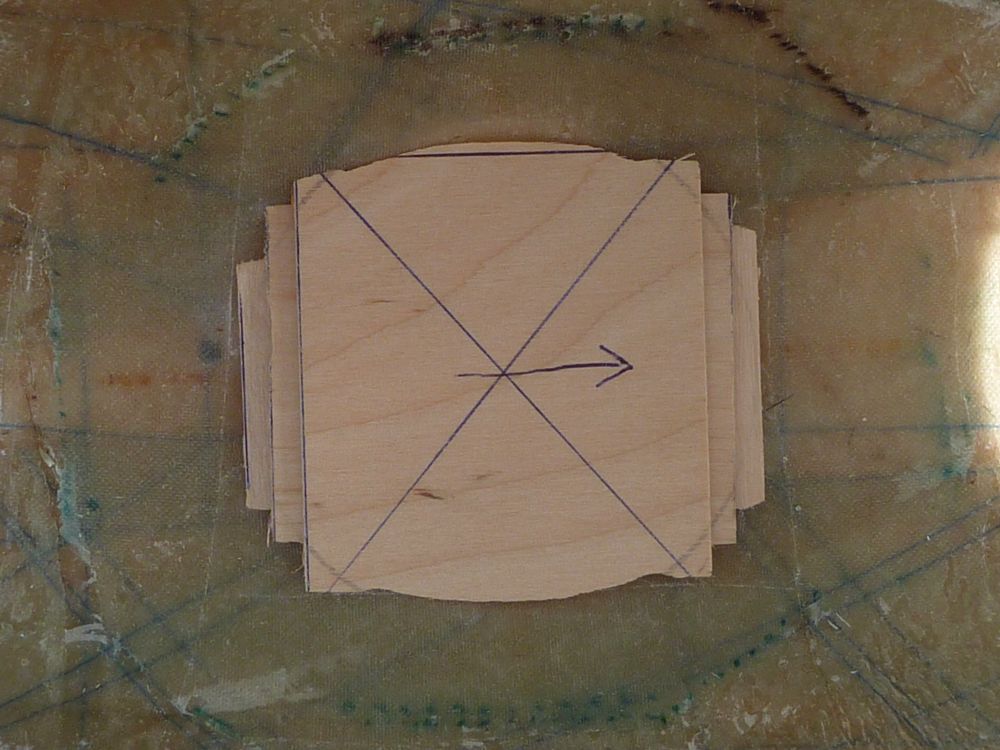

Layers 1, 2, 3 & 4 of the plywood pad for the tailwheel arm mount, placed in the depression in the fuselage bottom.

tailwheel mount pad ply 5

tailwheel mount pad ply 5: 2013-08-30

Panasonic Lumix DMC-FT1

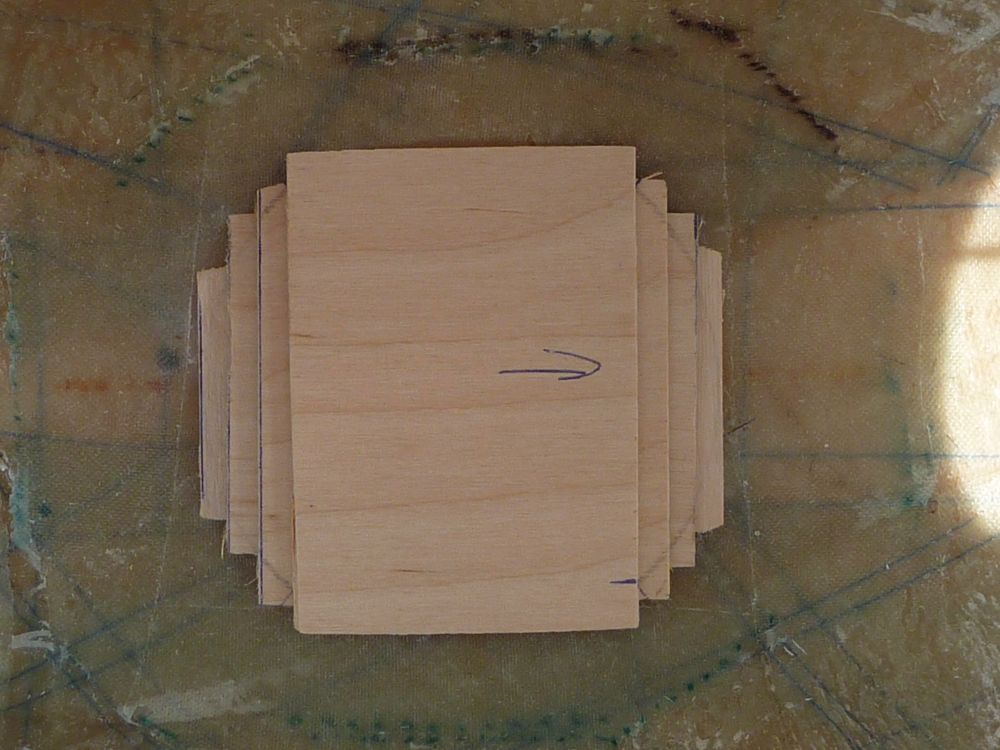

Layers 1, 2, 3, 4 & 5 of the plywood pad for the tailwheel arm mount, placed in the depression in the fuselage bottom.

tailwheel mount pad ply 6

tailwheel mount pad ply 6: 2013-08-30

Panasonic Lumix DMC-FT1

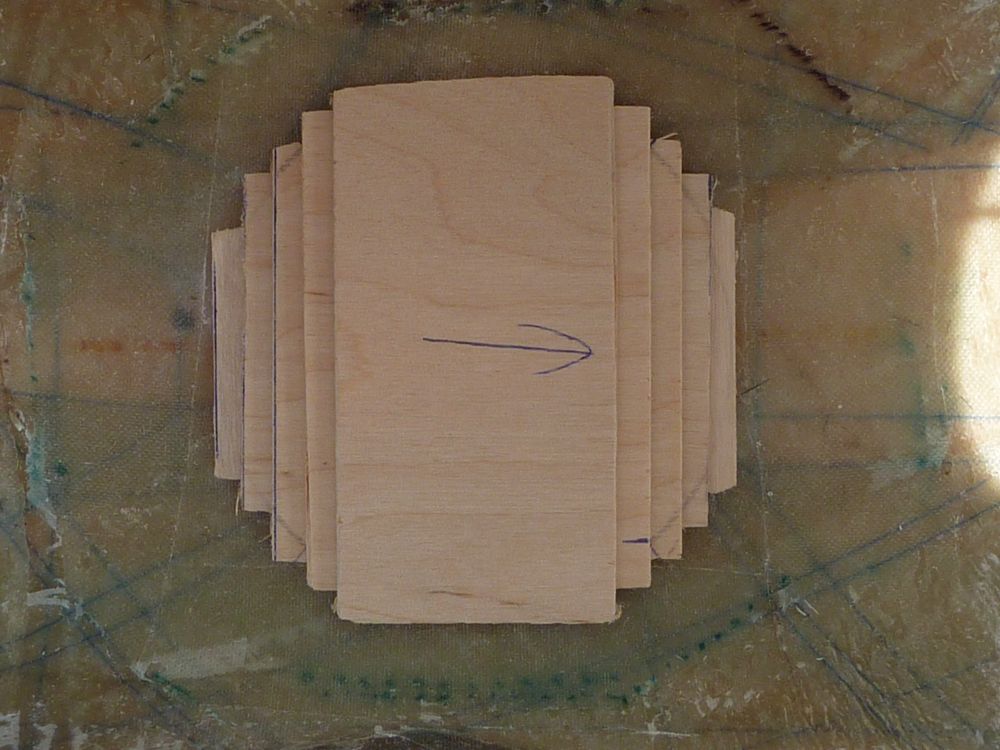

Layers 1, 2, 3, 4, 5 & 6 of the plywood pad for the tailwheel arm mount, placed in the depression in the fuselage bottom.

tailwheel mount pad ply 7

tailwheel mount pad ply 7: 2013-08-30

Panasonic Lumix DMC-FT1

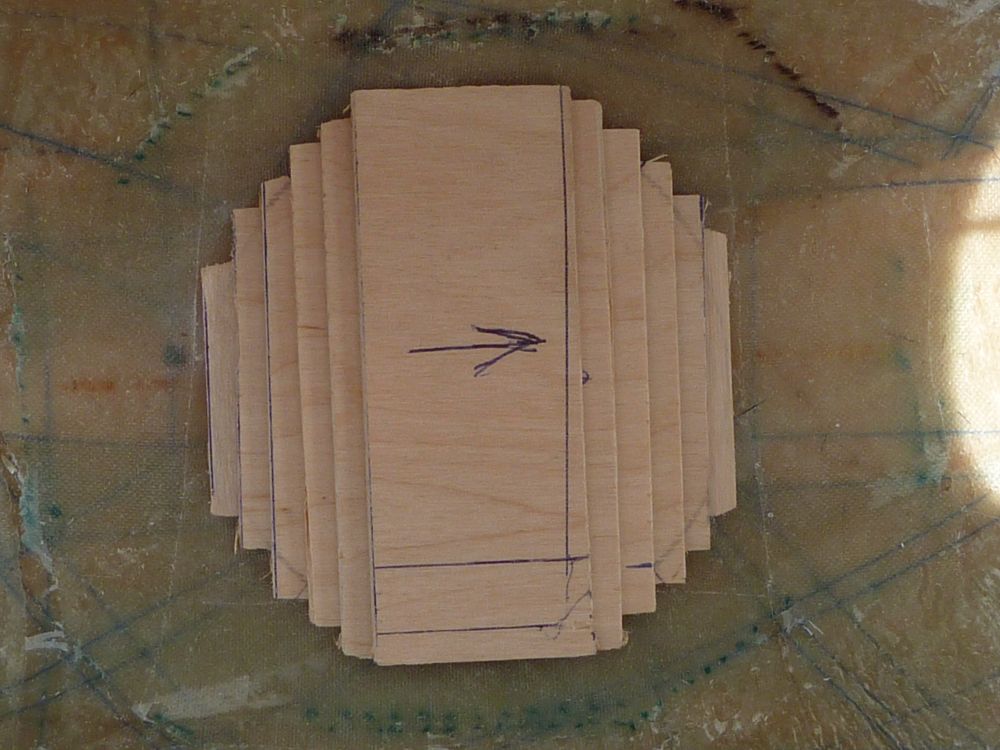

Layers 1, 2, 3, 4, 5, 6 & 7 of the plywood pad for the tailwheel arm mount, placed in the depression in the fuselage bottom.
