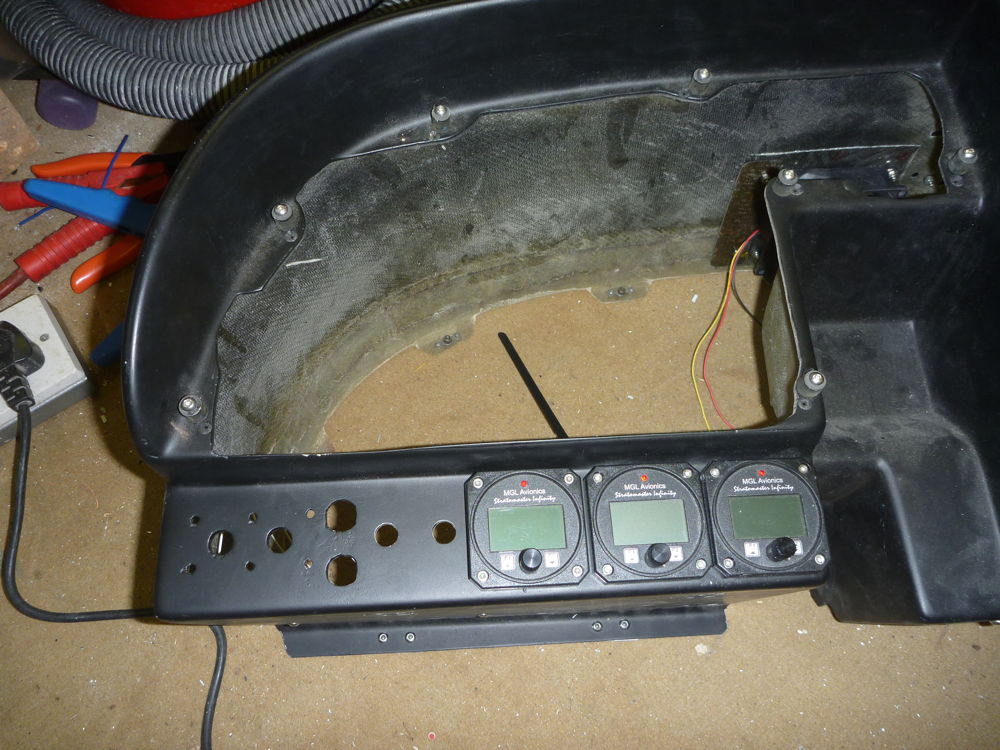

subpanel instruments fitted: 2020-05-21 Panasonic DMC-FT1
The MGL Stratomaster instruments fitted to the F14 Instrument Module sub-panel. From left to right: E-3 engine monitor, TP-1 temperature & pressure gauge and BAT-1 battery monitor.

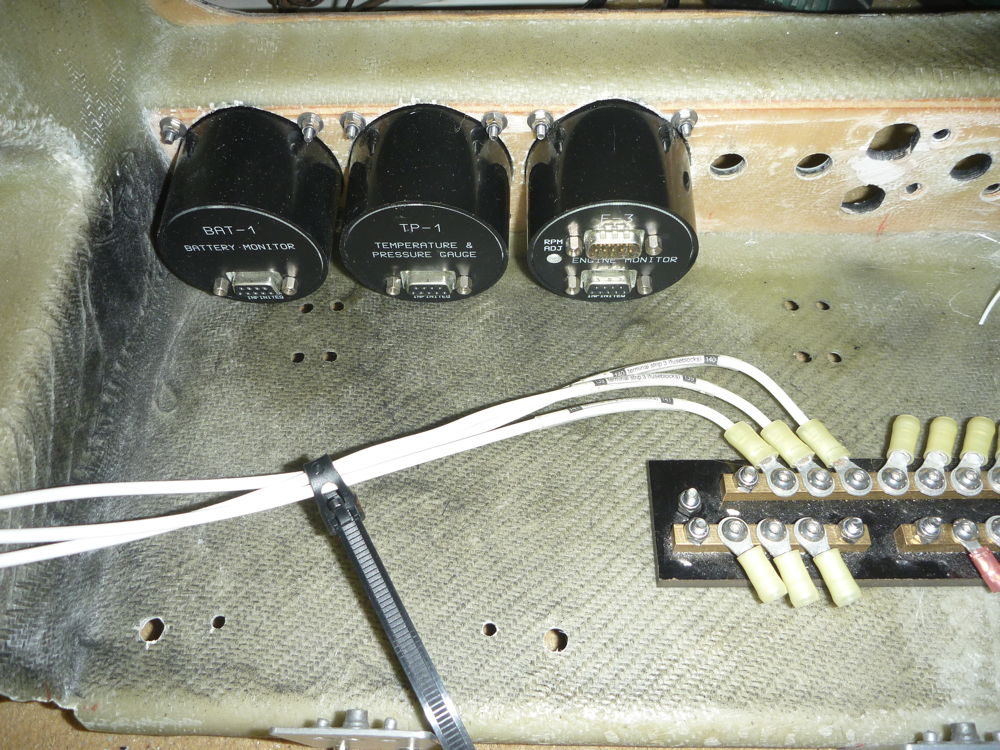

subpanel instruments fitted: 2020-05-21 Panasonic DMC-FT1
The MGL Stratomaster instruments fitted to the F14 Instrument Module sub-panel. From right to left: E-3 engine monitor, TP-1 temperature & pressure gauge and BAT-1 battery monitor.
