Starboard strobe cable to PSU
|
 |
Starboard strobe cable to PSU
starboard strobe cable at PSU: 2020-10-16 Panasonic DMC-FT1

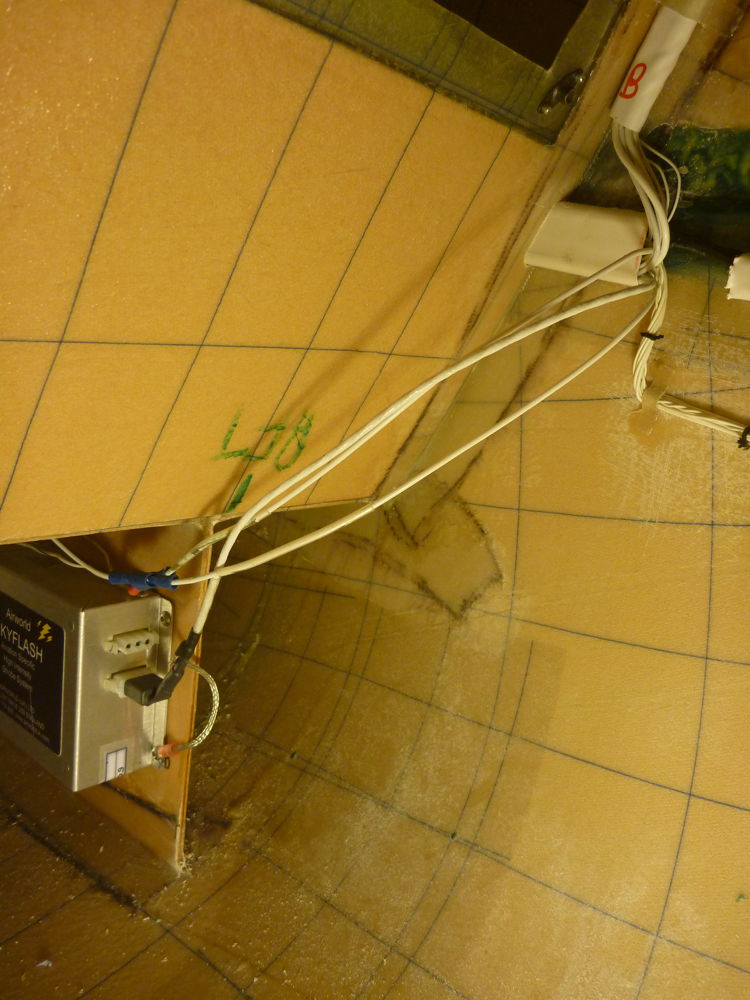

The cable for the starboard wing connector fitted to the strobe PSU under the baggage bay. I chose to use screened cable for this section of wiring because it runs parallel to the headset and comms antenna wiring, and I wanted to minimise interference from the high-energy strobe pulses. The cable screen is earthed to the strobe PSU case at this end and insulated at the wing root end. In the wing conduits, I am using the unscreened cables supplied in the SkyFlash kit, since those run at right-angles to the majority of the other wiring and so will be less likely to induce interference signals.
|
