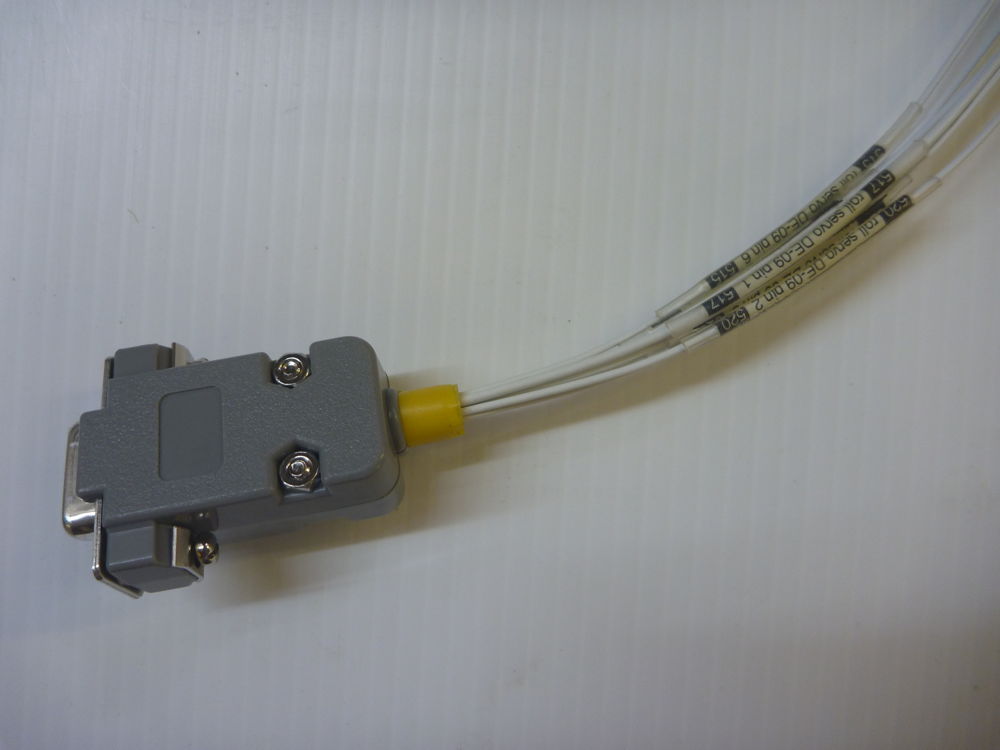

autopilot servo connector: 2020-08-18 Panasonic DMC-FT1
The pins in the DE-09S connector for the wing leveller roll servo were solder-bucket types, so the wires needed positive support to prevent fatigue fractures of the solder joints. Initially I used a heat-shrink sleeve but that was not gripped firmly enough so I added some insulating tape so that the shell fitted tightly on the wire bundle.
