Redux pre-bond thickness on port wing ribs
|
|
Redux pre-bond thickness on port wing ribs |
|
|
 |
Navigation & Acknowledgements |
10 pictures on this page - scroll down to see the rest
port wing rib pre-bonded: 2008-04-08
Nikon Coolpix 8400

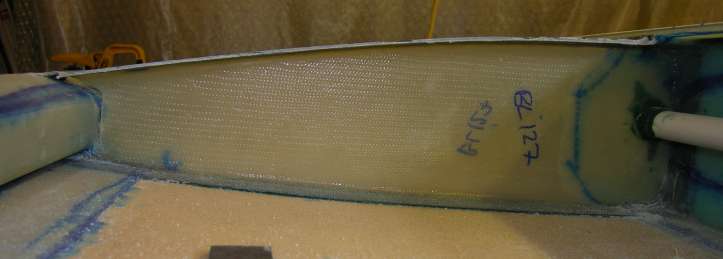

Port wing rib at BL127 showing depth of Redux after pre-bonding. The pre-bond thicknesses are similar to those observed on the starboard wing back in November 2007, but exhibit a slightly different pattern from root to tip.
port wing rib pre-bonded: 2008-04-08
Nikon Coolpix 8400
Port wing rib at BL97.5 (outboard side of double rib at outrigger) showing depth of Redux after pre-bonding.
port wing rib pre-bonded: 2008-04-08
Nikon Coolpix 8400

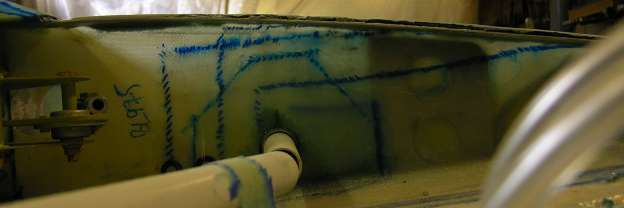

Port wing rib at BL95.5 (inboard side of double rib at outrigger) showing depth of Redux after pre-bonding.
port wing rib pre-bonded: 2008-04-08
Nikon Coolpix 8400

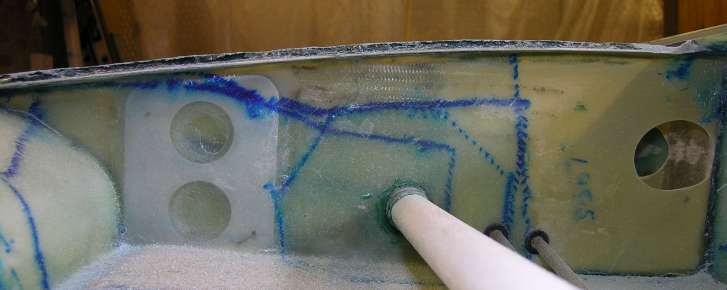

Port wing rib at BL75 showing depth of Redux after pre-bonding.
port wing rib pre-bonded: 2008-04-08
Nikon Coolpix 8400

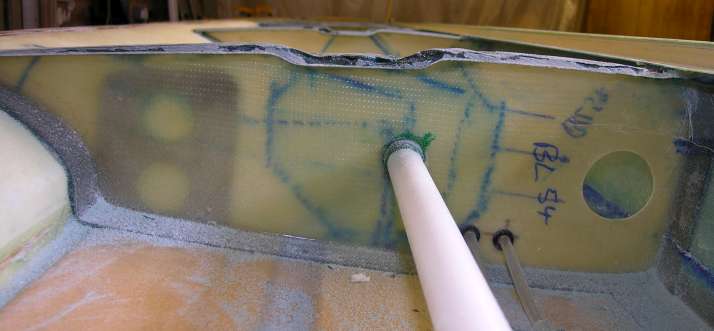

Port wing rib at BL54 showing depth of Redux after pre-bonding.
port wing rib pre-bonded: 2008-04-08
Nikon Coolpix 8400

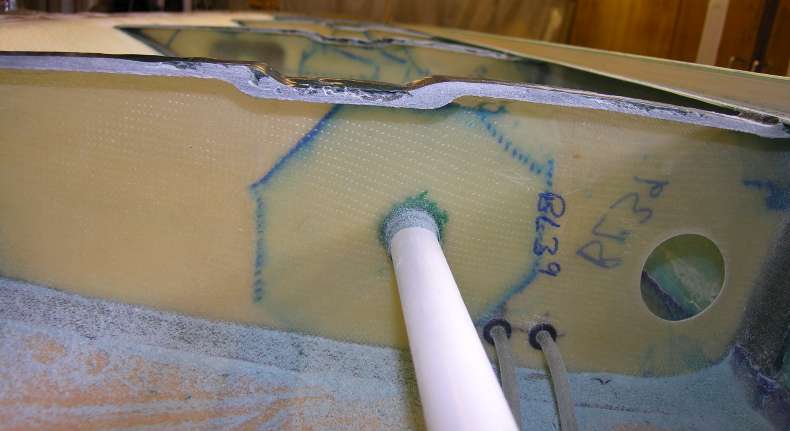

Port wing rib at BL39 showing depth of Redux after pre-bonding.
port wing rib pre-bonded: 2008-04-08
Nikon Coolpix 8400
Port wing rib at BL29.5 showing depth of Redux after pre-bonding.
port wing rib pre-bonded: 2008-04-08
Nikon Coolpix 8400

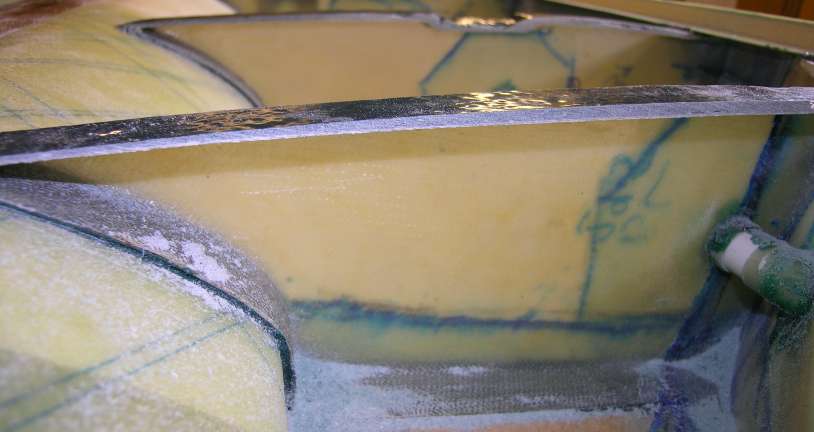

Port wing angled walkway rib showing depth of Redux after pre-bonding.
port wing horn box pre-bonded: 2008-04-08
Nikon Coolpix 8400

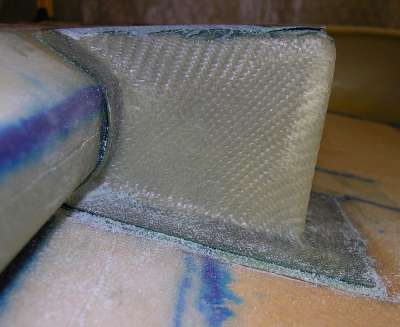

Port wing outboard horn box showing depth of Redux after pre-bonding.
port wing horn box pre-bonded: 2008-04-08
Nikon Coolpix 8400

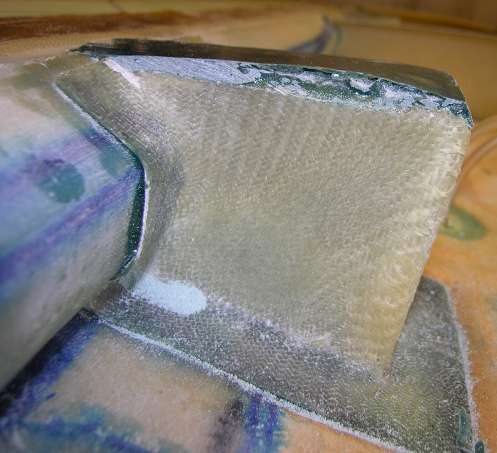

Port wing inboard horn box showing depth of Redux after pre-bonding.
