MGL E-3 and BAT-1 powered up
|
 |
MGL E-3 and BAT-1 powered up
E-3 and BAT-1 working: 2021-01-30 Panasonic DMC-FT1

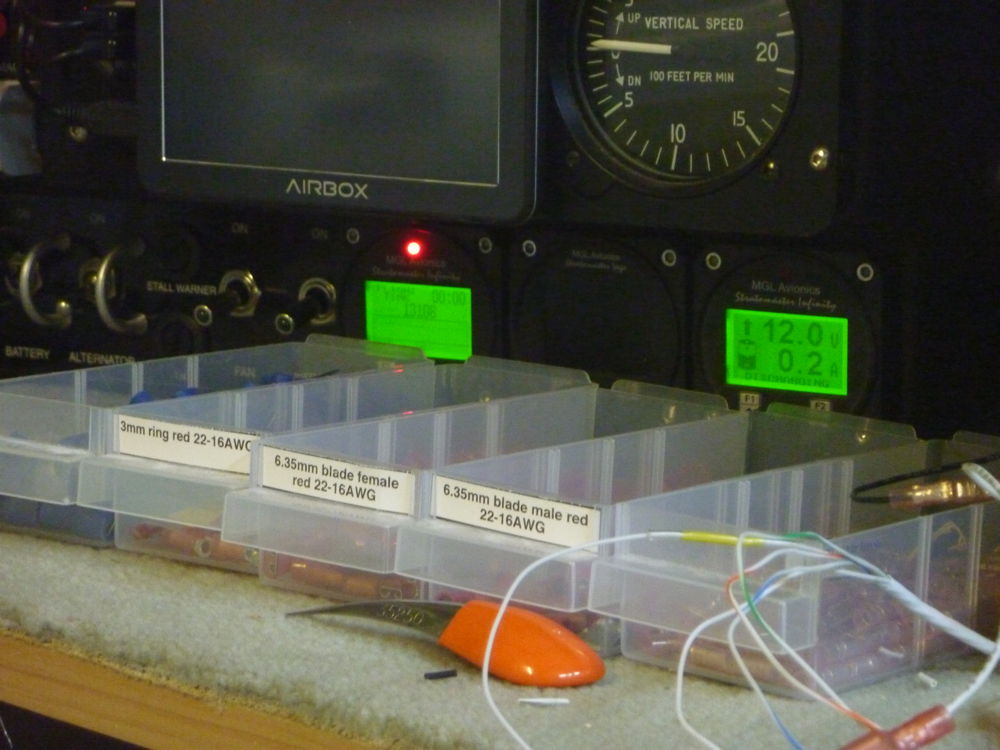

With appropriate fuses installed, power applied from an external PSU and the master switch on, the MGL instruments E-3 (left) and BAT-1 (right) light up, but TP-3 in the middle does not. I later realised that was because it is earthed via the engine block and I hadn't commoned the engine with the battery earth lead when connecting the PSU. BAT-1 is already giving a sensible reading. E-3 will need some configuration before it shows useful readings.
|
This page last updated 2021-02-08.
