fuseblock wires from busbar: 2020-05-13 Panasonic DMC-FT1

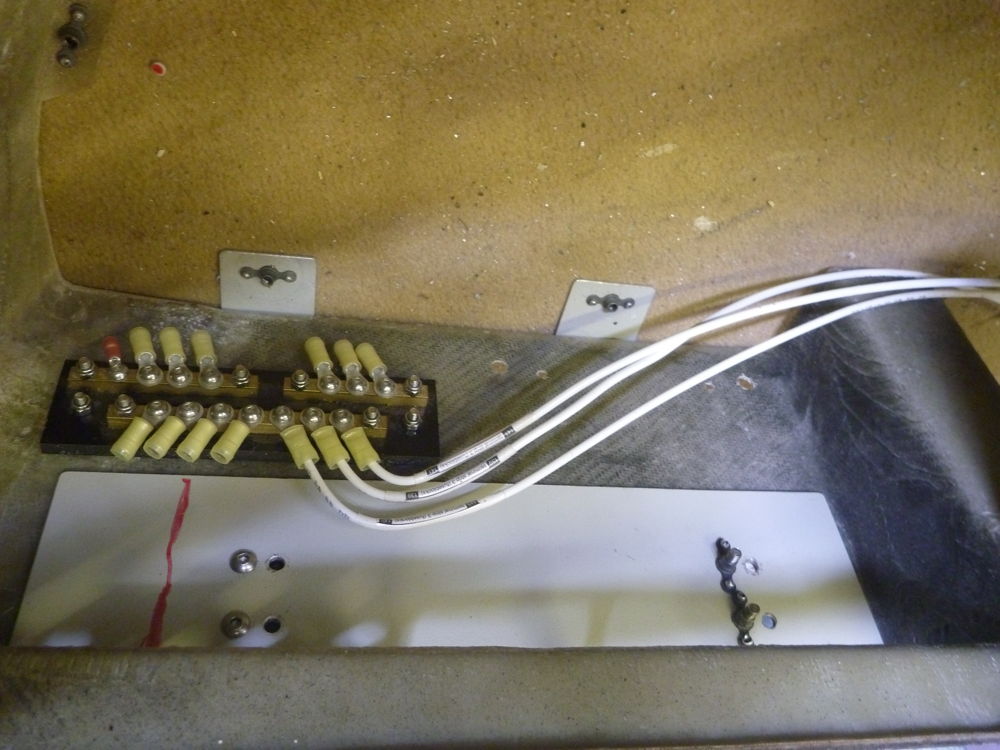

Starting to install wires in the F14 Instrument Module. Here are the 3 wires from the busbar going off to the fuseholders under the shelf.

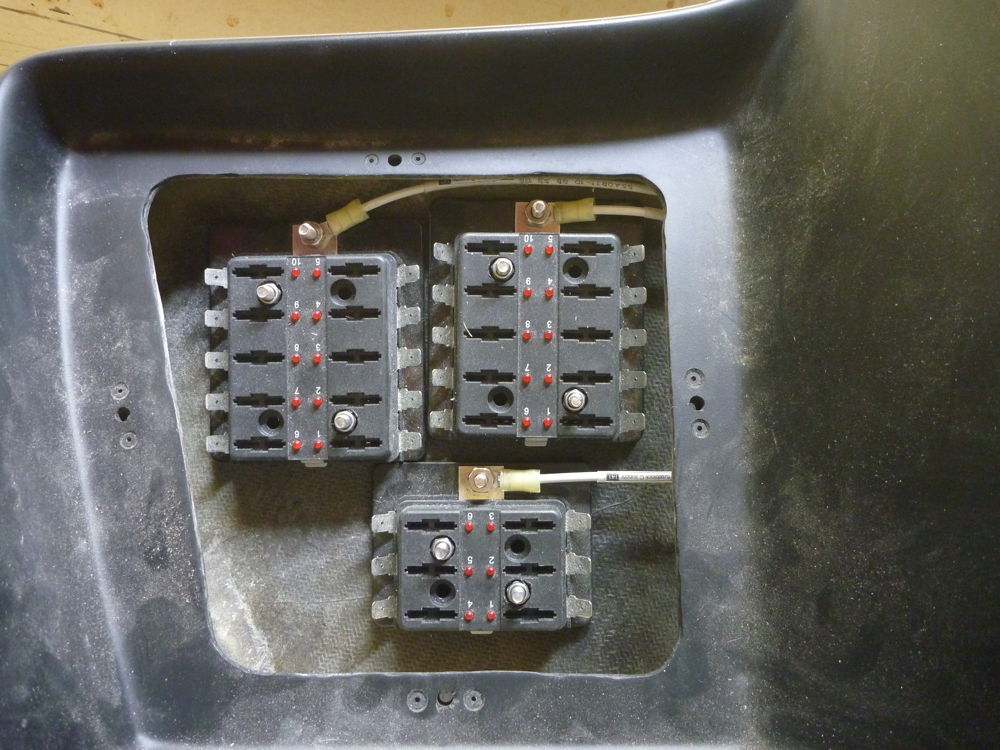

fuseblock wires from busbar: 2020-05-13 Panasonic DMC-FT1
The 3 supply wires from the busbar terminated on the fuseholder input studs.
