flap root extension inner layup: 2015-05-15
Lumix DMC-FT1

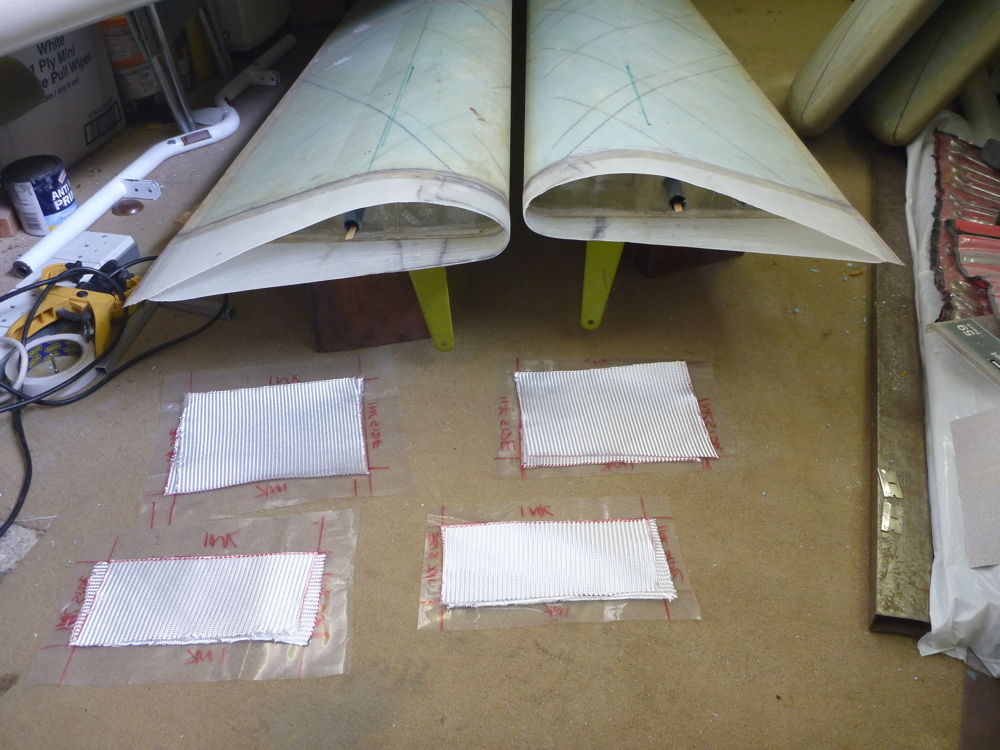

Preparing to do the first inner layups on the flap root extension. The larger (200mm x 150mm) pieces of BID are for the trailing edge and the smaller (200mm x 90mm) pieces are for the leading edge where the layup is narrower. I felt it was easier to do these inside layups in 4 pieces each rather than the 2 pieces I used for the outside layers.
