Fit trim servo
|
|
Fit trim servo |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest
Trim servo fitted: 2012-01-26
Lumix DMC-FT1

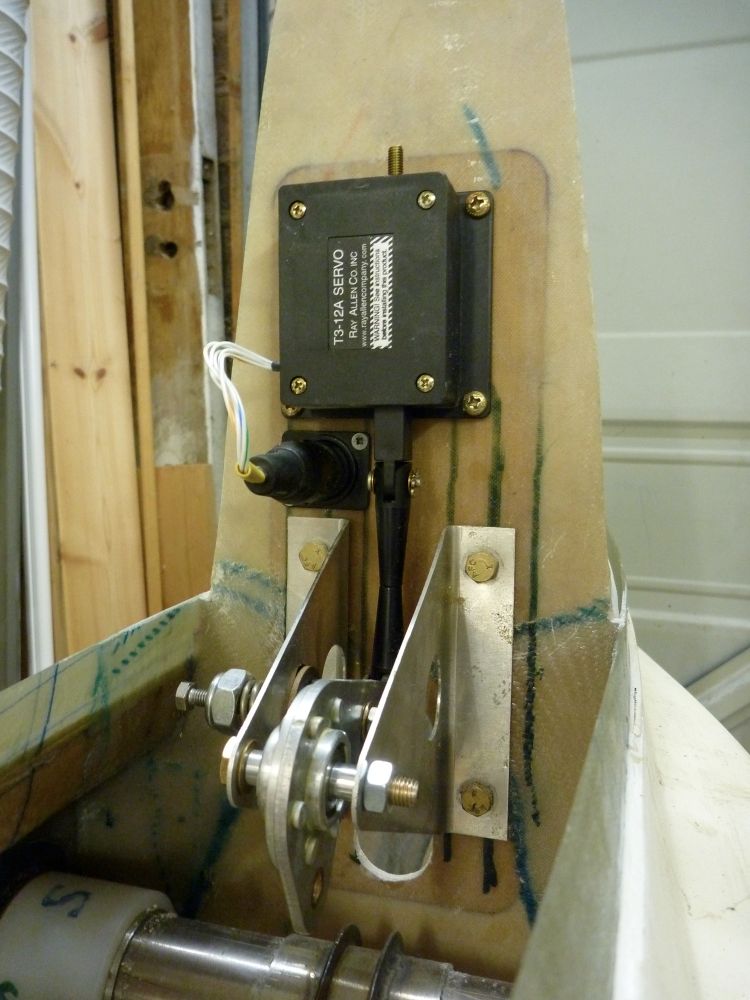

The trim servo and its associated bellcrank fitted on the rear fuselage bulkhead. The cable connexions go through a 5-pin XLR free plug and a chassis socket mounted on the bulkhead.
Trim servo fitted: 2012-01-26
Lumix DMC-FT1
Aft side of the rear fuselage bulkhead showing the stiffnut fixings for the trim servo and bellcrank brackets, and the cable terminated in a 5-pin XLR chassis socket.
