cooling fan
|
|
cooling fan |
|
|
 |
Navigation & Acknowledgements |
4 pictures on this page - scroll down to see the rest
fan and GPS antenna: 2014-01-10
Panasonic Lumix DMC-FT1

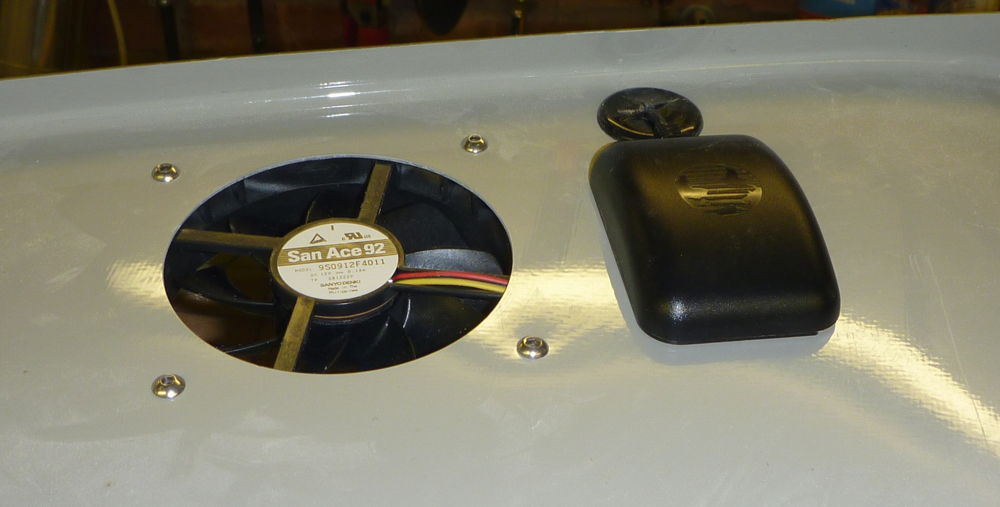

The cooling fan and GPS antenna mounted on the top of the instrument module.
fan and GPS antenna: 2014-01-10
Panasonic Lumix DMC-FT1

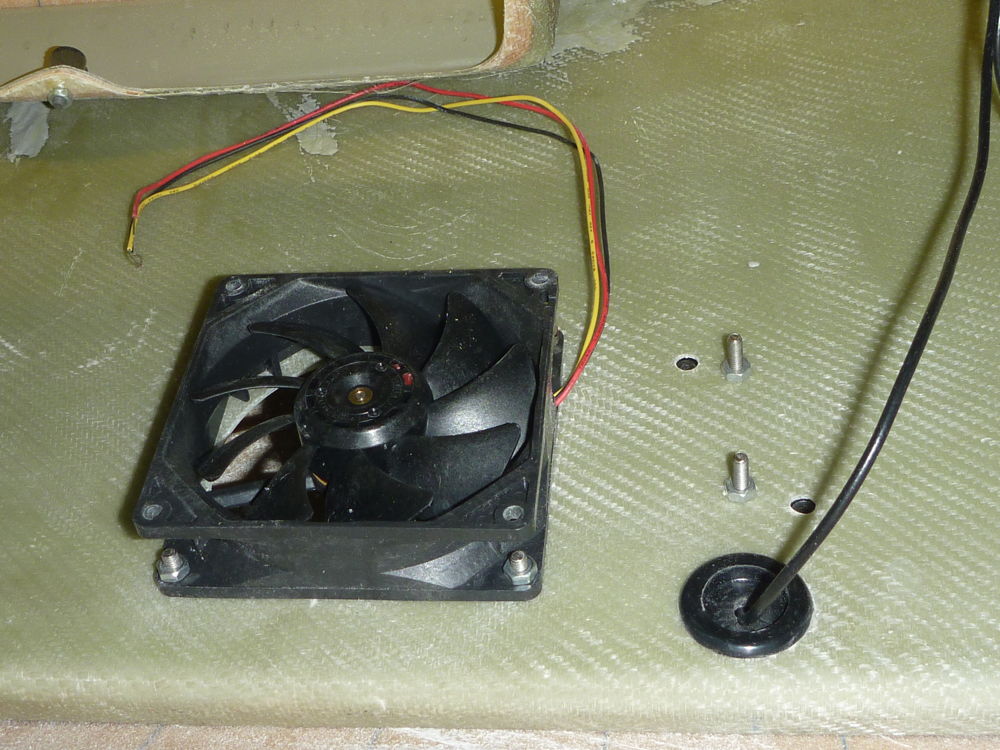

Underside view of the cooling fan and GPS antenna mounted on the top of the instrument module.
fan moved: 2014-01-10
Panasonic Lumix DMC-FT1

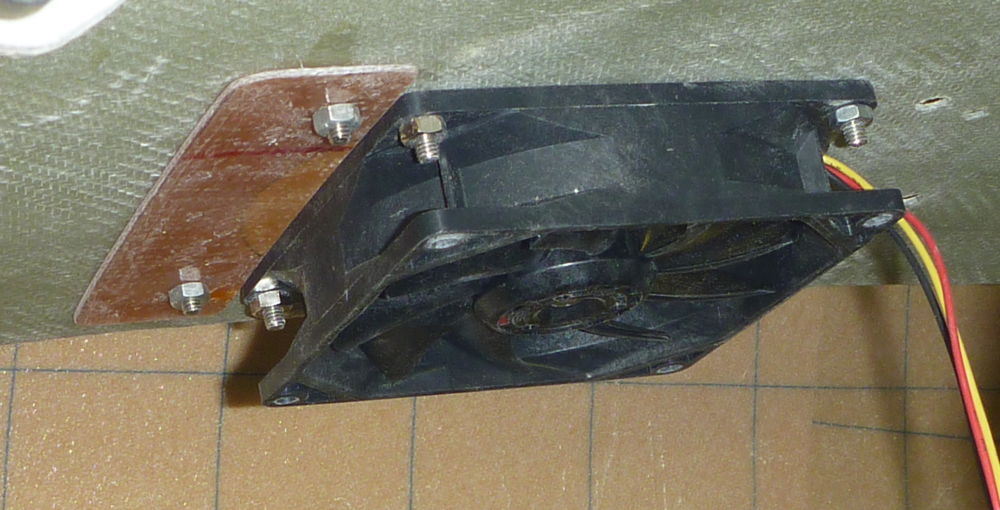

Underside view of the cooling fan after moving it sideways to clear the instruments. A blanking plate is fitted to cover the unwanted part of the hole. One of those plan ahead lessons!
fan moved: 2014-01-10
Panasonic Lumix DMC-FT1

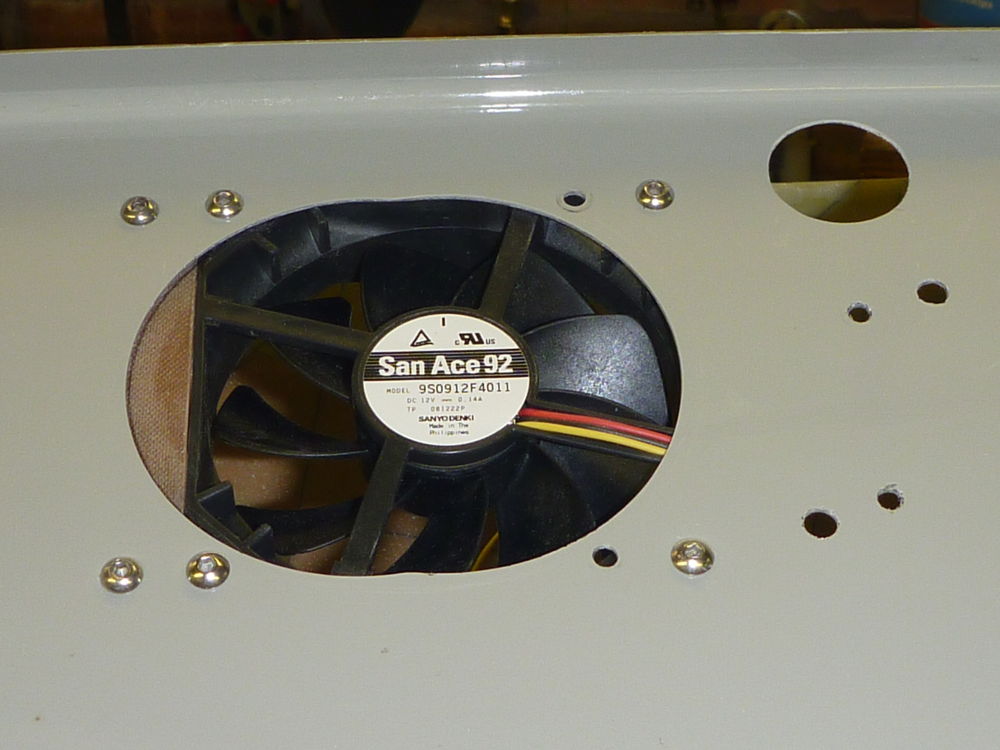

The cooling fan moved sideways to clear the instruments, with a blanking plate fitted to cover the unwanted part of the hole.
