comms antenna conduit: 2014-01-21
Panasonic Lumix DMC-FT1

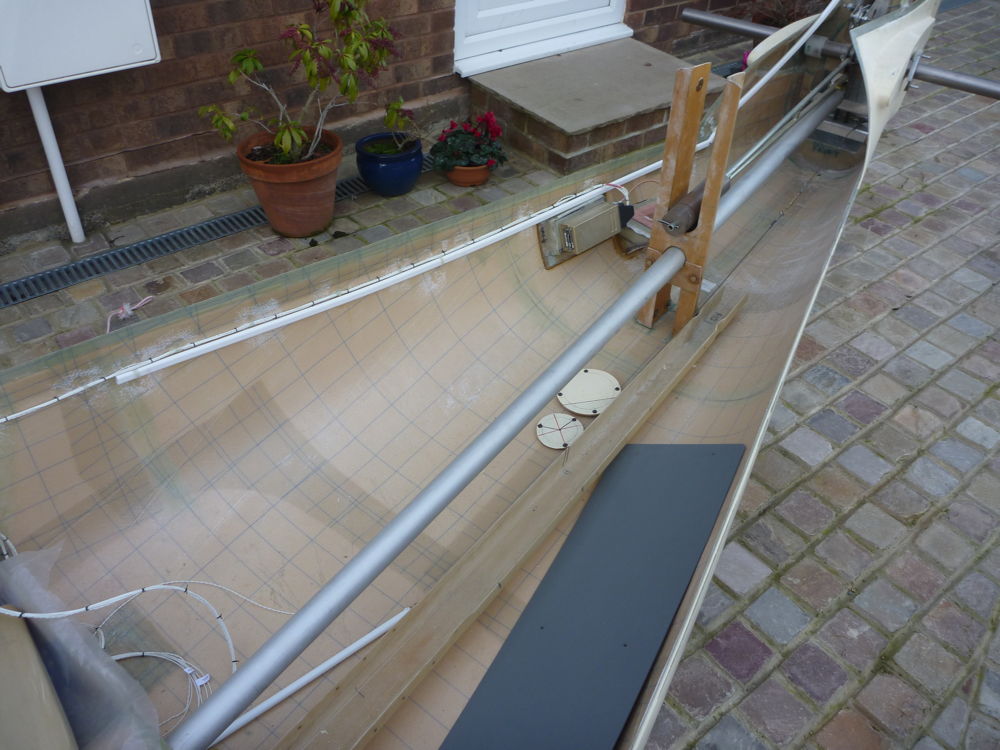

The main run of the conduit for the VHF comms antenna cable along the starboard side of the fuselage.
comms antenna conduit: 2014-01-21
Panasonic Lumix DMC-FT1

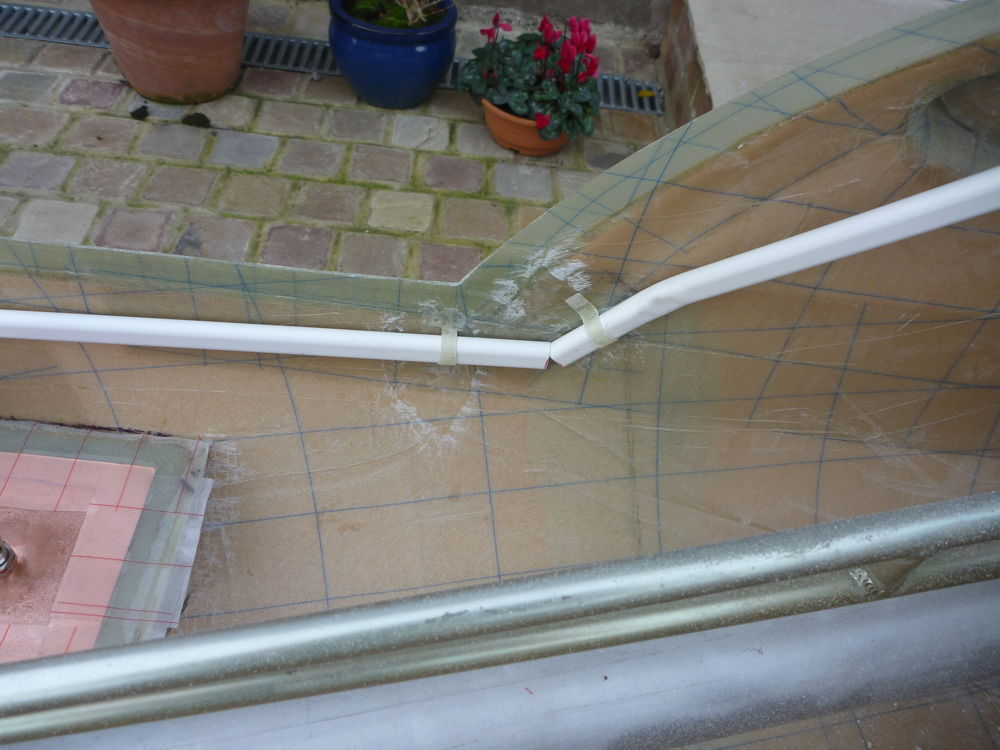

The point where the main (horizontal) run of conduit for the VHF comms antenna cable meets the part that runs up through the fin. The upright part has been bent slightly with a heat gun near the bottom to conform to the fuselage shape. Both sections of conduit are held in place with small clips made from a glass-fibre layup profile.
comms antenna conduit: 2014-01-21
Panasonic Lumix DMC-FT1

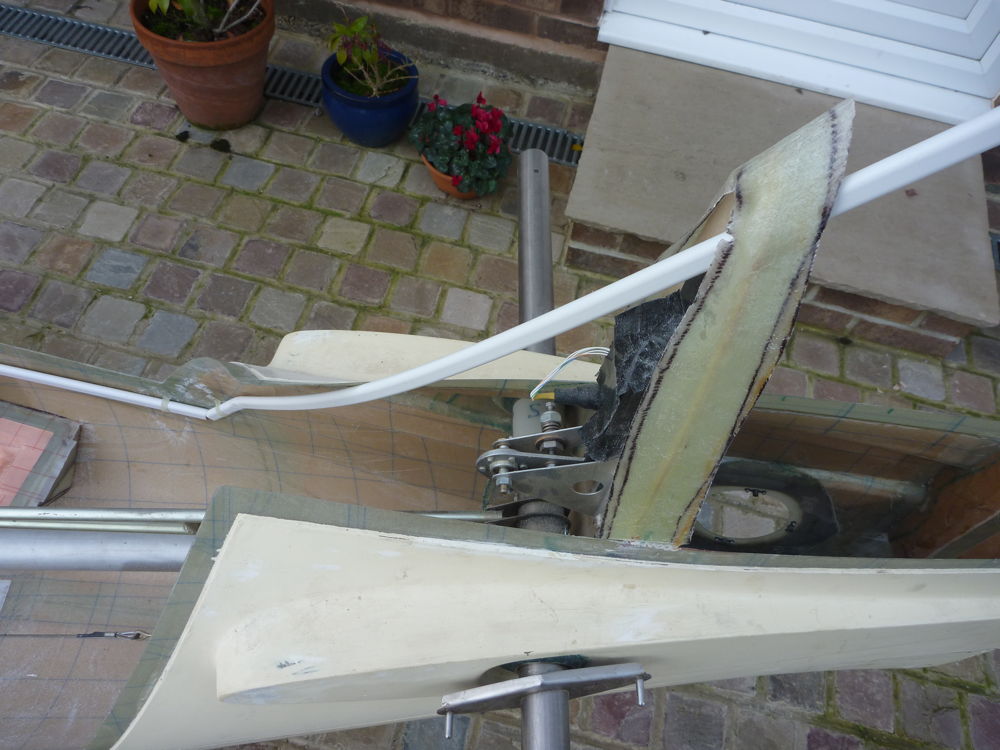

The conduit for the VHF comms antenna cable running up through the rear bulkhead and fin.
comms antenna conduit: 2014-01-21
Panasonic Lumix DMC-FT1

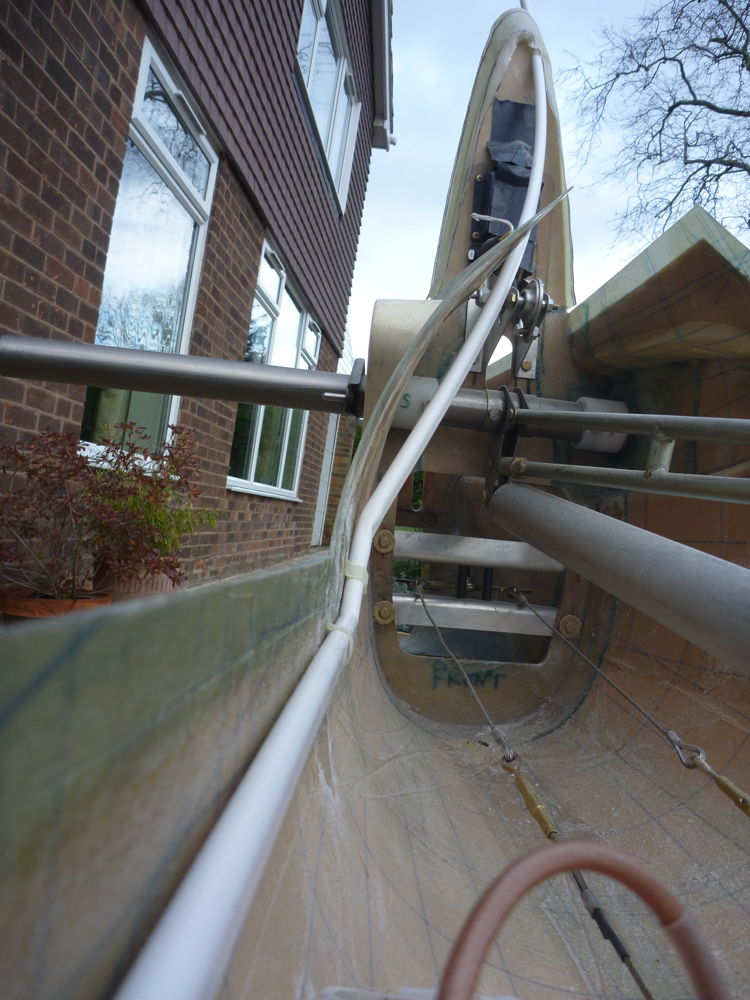

The conduit for the VHF comms antenna cable running aft along the starboard side of the fuselage then up through the rear bulkhead and fin.
comms antenna conduit: 2014-01-21
Panasonic Lumix DMC-FT1

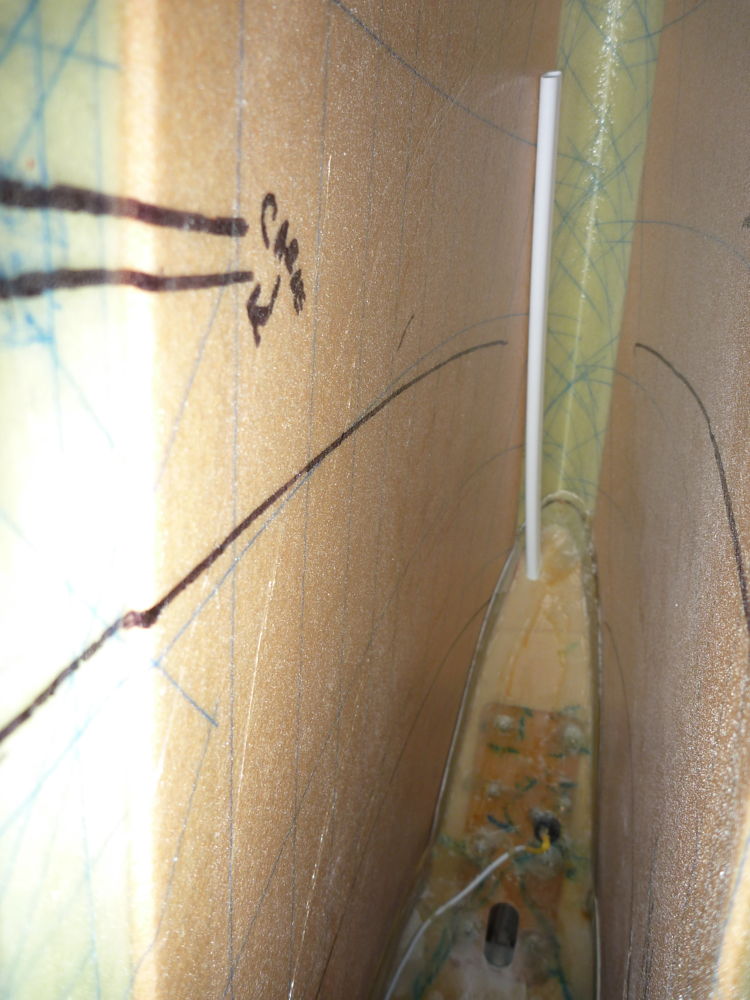

The conduit for the VHF comms antenna cable running up through the rear bulkhead and fin. The pair of marks on the port inner face of the fin show the approximate position of the centre of the antenna.
comms antenna conduit: 2014-01-21
Panasonic Lumix DMC-FT1

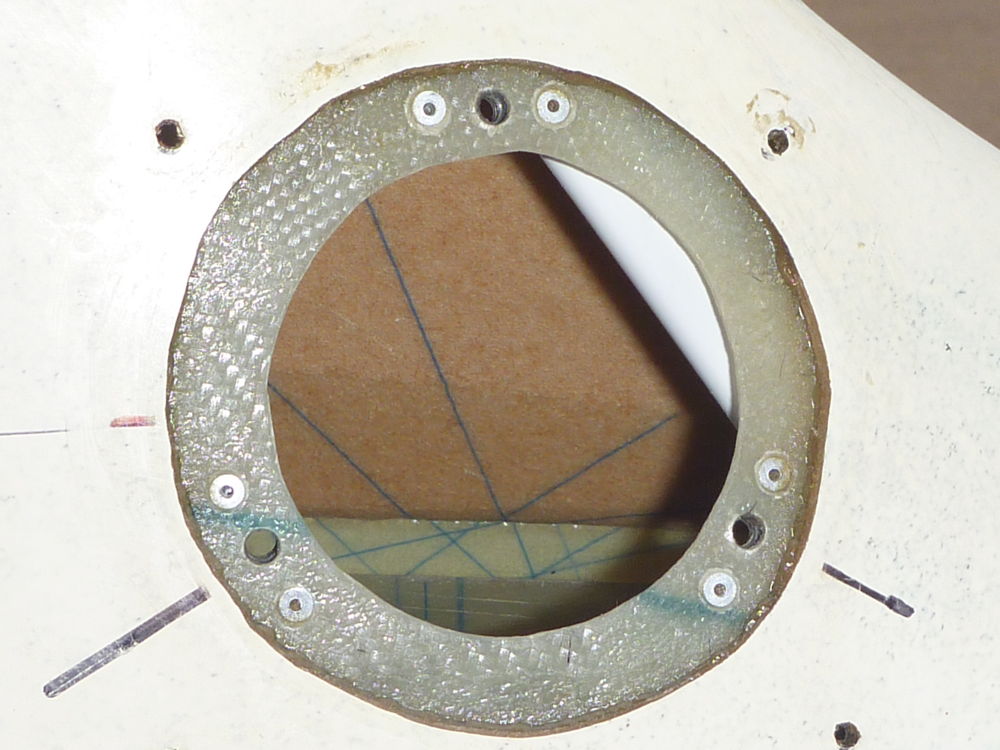

The conduit for the VHF comms antenna cable running up through the fin passes close to the access panel at the root of the fin.
comms antenna conduit: 2014-01-21
Panasonic Lumix DMC-FT1

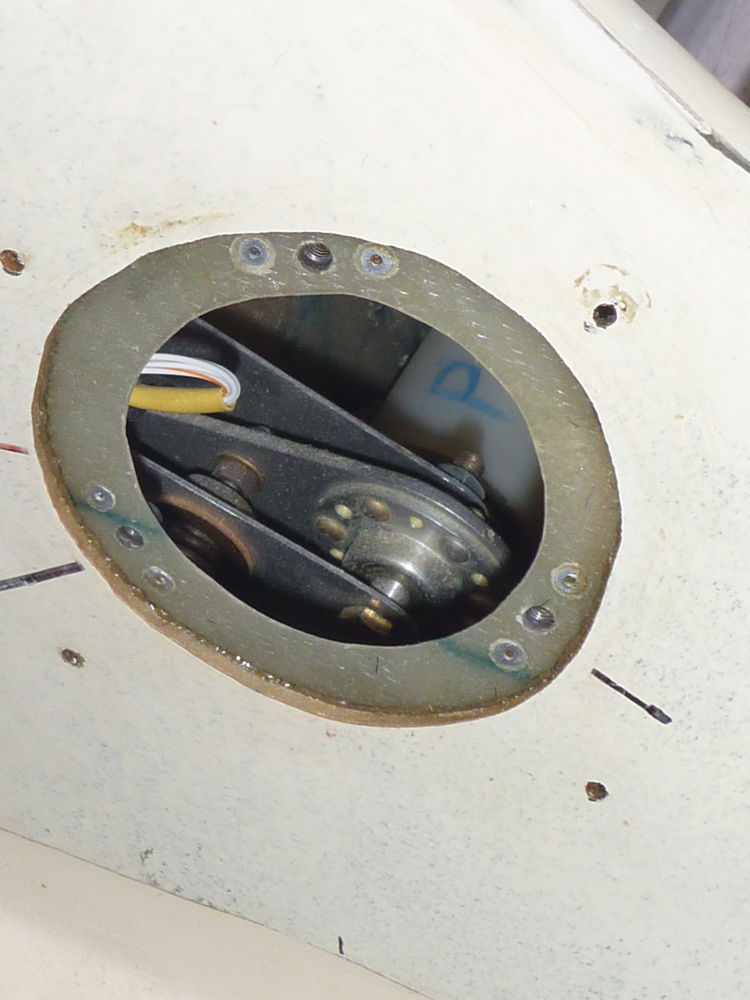

The conduit for the VHF comms antenna cable running up through the fin passes close to the access panel at the root of the fin, but as this view shows, it does not obstruct access to the trim system.
