USB wires on terminal strip: 2020-11-18 Panasonic DMC-FT1

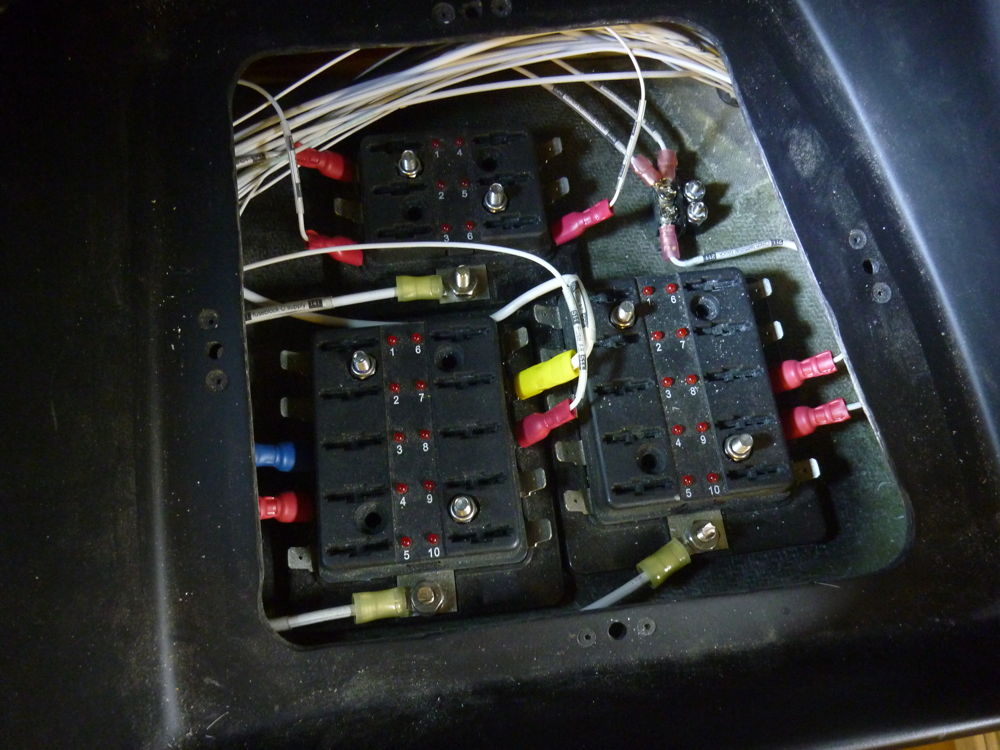

The Cinch terminal block (for the USB power outlets) mounted in the Instrument Module adjacent to the fuseblocks, with the wires connected to it.
