fitting latch to cowl centre hatch cover

3 pictures on this page - scroll down to see the rest


fitting latch to cowl centre hatch

fitting latch to cowl centre hatch: 2023-09-30 Panasonic DC-TZ90

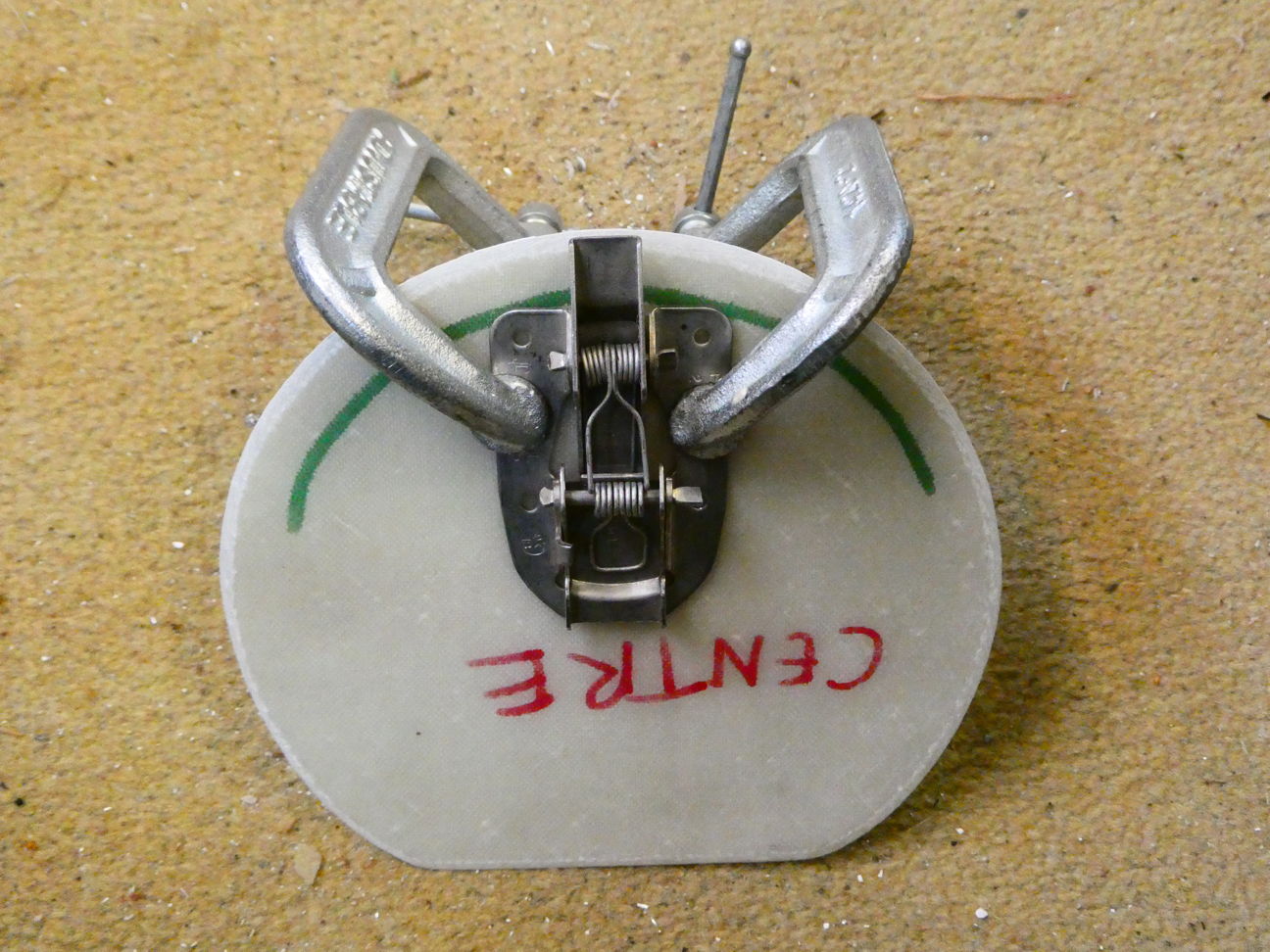

The Hartwell latch clamped to the inner face of the cowl centre hatch cover, ready for drilling the rivet holes. The green felt-tip line (drawn against the edge of the cowl recess) helps to ensure correct positioning.


fitting latch to cowl centre hatch

fitting latch to cowl centre hatch: 2023-09-30 Panasonic DC-TZ90

Drilling the rivet holes for the Hartwell latch on the cowl centre hatch cover. Two hole have been made and clecos inserted to maintain alignment while drilling remainder.


fitting latch to cowl centre hatch

fitting latch to cowl centre hatch: 2023-09-30 Panasonic DC-TZ90

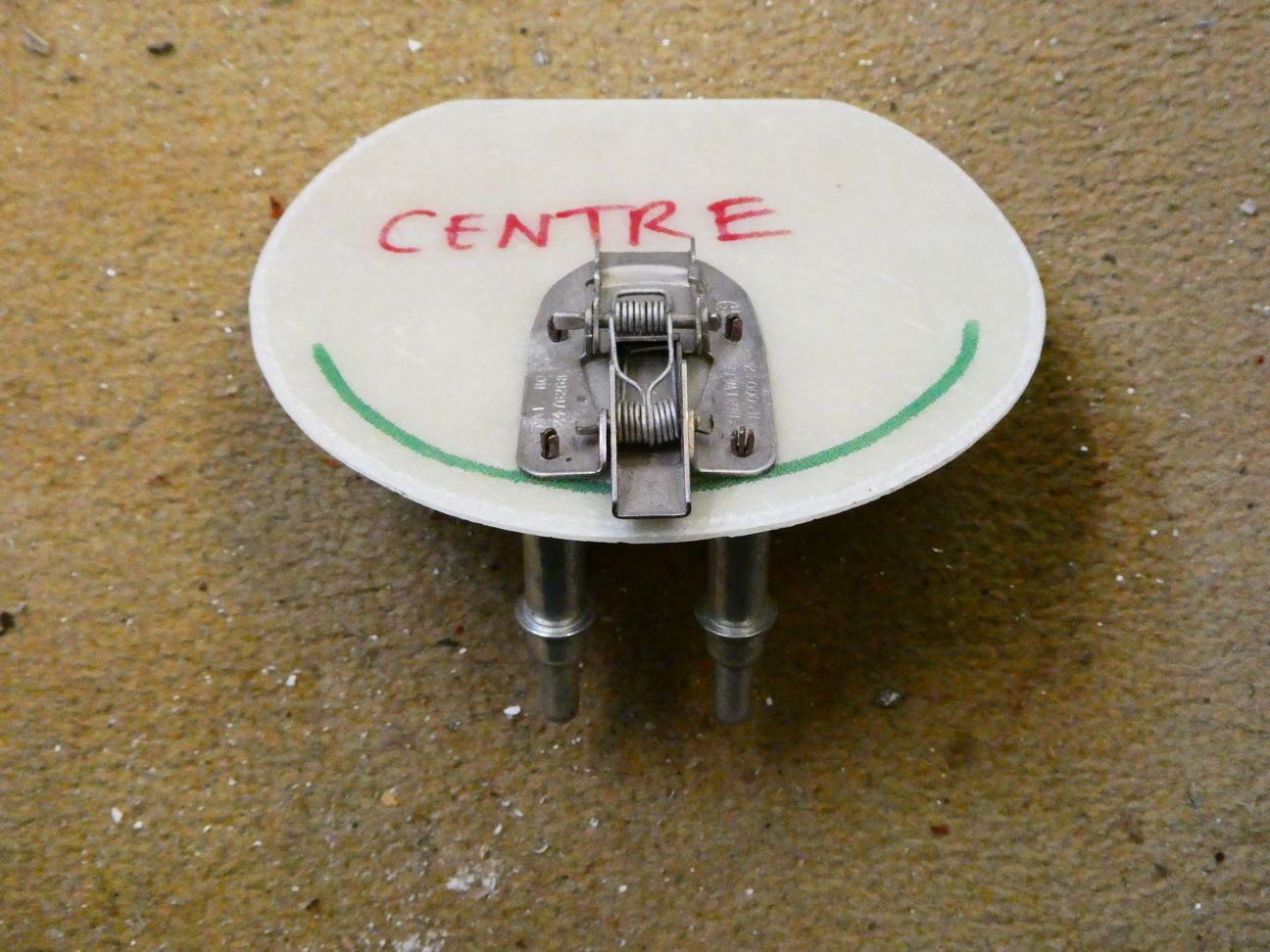

The rivet holes for the Hartwell latch on the cowl centre hatch cover have been drilled and clecos inserted.
